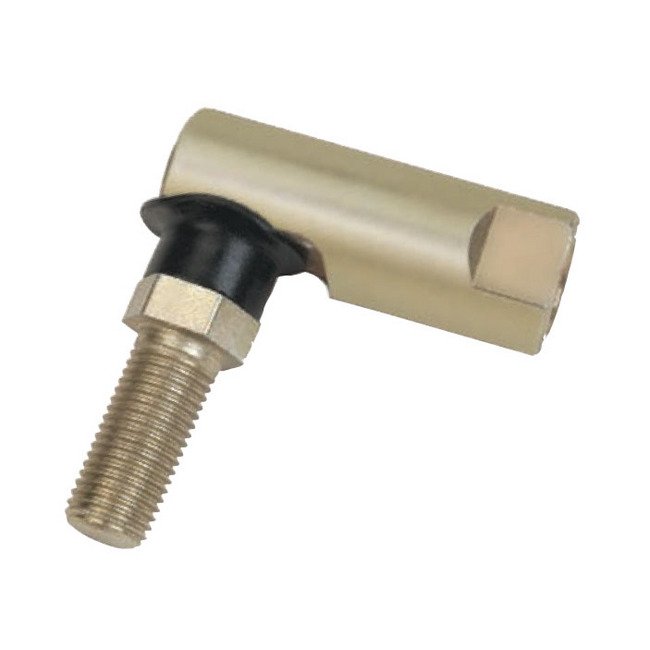

R-G Ball Joints Right Hand Rod End

R-G Ball Joints Right Hand Rod End

PUS-120323

Durable R-G Ball Joints rod end with steel body, staked design ball stud, rubber grommet seal, and SAE J490 compliance.

$24.99
$24.99
Sale

Initiate Order

R-G Ball Joints Right Hand Rod End

R-G Ball Joints Right Hand Rod End

$24.99

Quantity: 1

Claim Your Seller Account

R-G Ball Joints Right Hand Rod End

R-G Ball Joints Right Hand Rod End

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The R-G Ball Joints Right Hand Rod End is a robust solution designed for medium to heavy-duty applications in various industries. Constructed with a steel body and ball stud featuring a staked design, this rod end offers durability and extended wear life. The inclusion of a rubber grommet ensures a reliable seal against contaminants, while the ability to operate in temperatures ranging from -30 ºF to 250 ºF makes it versatile. This product is customizable to fit specific requirements, available in custom sizes and assemblies including male to male or female to female configurations with right or left-handed threads. It complies with SAE specification J490 (Type G/Style 2) for assured quality.

Product Specifications

Applications 0
Various integral ball joint applications, including:Lawn and garden equipmentConstructionIndustrial equipment
Features 0
Steel body and ball stud "staked" design offers an economical solution to medium to heavy-duty ball joint applicationsBall stud is case hardened for extended wear lifeRubber grommet provides a durable seal against contaminantsCan be used in a wide range of temperatures: -30 ºF - 250 ºF (-34 ºC - 121 ºC)Custom sizes and assemblies can be built to your specifications, including: - male to male or female to female - right or left-handed threadsMany metric sizes available - consult factoryMeets SAE specification J490 (Type G/Style 2)
Material 0
Ball Stud - Low Carbon Steel, case Hardened for Extended Wear Life, Zinc Plated, Yellow Dichromate TreatedBody - Low Carbon Steel, Zinc Plated, Yellow Dichromate Treated

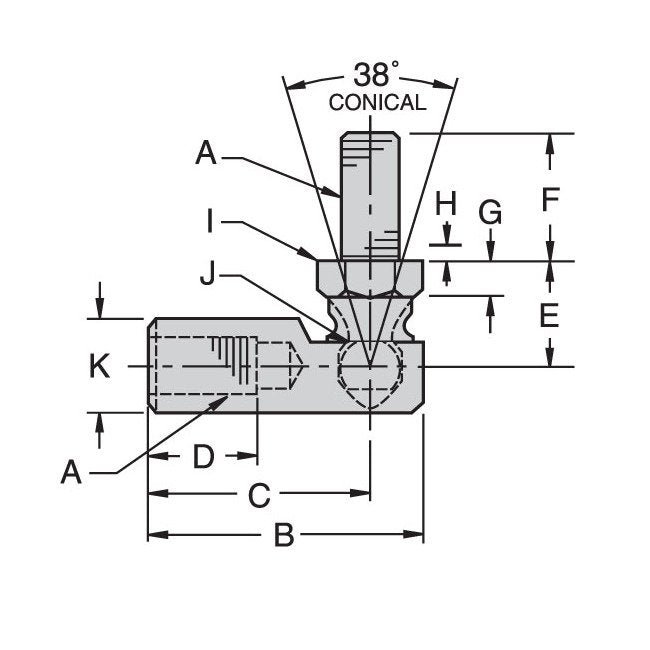

Specifications A Unf
10-32 "
Specifications B 0020
1.156 "
Specifications C 0020
0.875 "
Specifications D Min
0.469 "
Specifications E 0020
0.359 "
Specifications Force To Remove Ball Stud
690 lb
Specifications F 0020
0.438 "
Specifications G Ref
0.094 "
Specifications H Ref
0.062 "
Specifications I Ref
0.312 "
Specifications J Ref
0.177 "
Specifications K Ref
0.375 "
Specifications Note
Ball Joint can be ordered without the grommet by dropping the "G" suffix. Example: R108LHR103G size is supplied with a wrap around grommet.
Specifications Temperature Range
-30 to 250 ºF | -34 to 121 ºC
Specifications Tensile Shear Strength
295 lb
Specifications Wrench Flat Length
0.250 "
Specifications Wrench Flat Width
0.312 "
