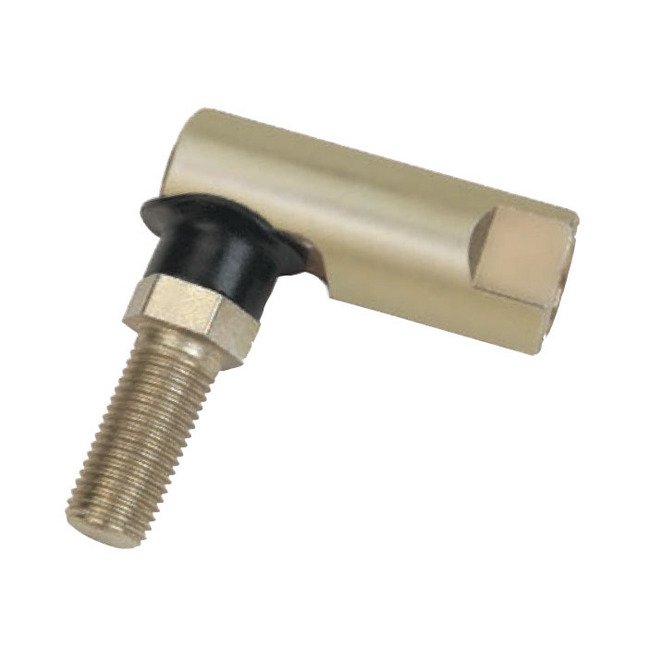

• R-G Left Hand Rod End Ball Joint - Image 1
  • R-G Left Hand Rod End Ball Joint - Image 2
1 2
Lexco Cable Manufacturing →

R-G Left Hand Rod End Ball Joint

R-G Left Hand Rod End Ball Joint

PUS-36d3c8

High-quality R-G Left Hand Rod End Ball Joint for durable, cost-effective, and versatile solutions in various applications.

$29.99
$29.99
Sale

Initiate Order

R-G Left Hand Rod End Ball Joint

R-G Left Hand Rod End Ball Joint

$29.99

Quantity: 1

Claim Your Seller Account

R-G Left Hand Rod End Ball Joint

R-G Left Hand Rod End Ball Joint

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The R-G Left Hand Rod End Ball Joint features a steel body and ball stud 'staked' design, providing an economical solution for medium to heavy-duty applications. This ball joint is case hardened for extended wear life and includes a rubber grommet for a durable seal against contaminants. With a temperature range of -30 ºF to 250 ºF, this ball joint is versatile and customizable to meet specific requirements, including different sizes and assemblies. Meeting SAE specification J490 (Type G/Style 2), it assures performance and reliability in various integral ball joint applications in industries such as construction, lawn and garden equipment, and industrial machinery.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Applications 0
Various integral ball joint applications, including:Lawn and garden equipmentConstructionIndustrial equipment
Features 0
Steel body and ball stud "staked" design offers an economical solution to medium to heavy-duty ball joint applicationsBall stud is case hardened for extended wear lifeRubber grommet provides a durable seal against contaminantsCan be used in a wide range of temperatures: -30 ºF - 250 ºF (-34 ºC - 121 ºC)Custom sizes and assemblies can be built to your specifications, including: - male to male or female to female - right or left-handed threadsMany metric sizes available - consult factoryMeets SAE specification J490 (Type G/Style 2)
Material 0
Ball Stud - Low Carbon Steel, case Hardened for Extended Wear Life, Zinc Plated, Yellow Dichromate TreatedBody - Low Carbon Steel, Zinc Plated, Yellow Dichromate Treated

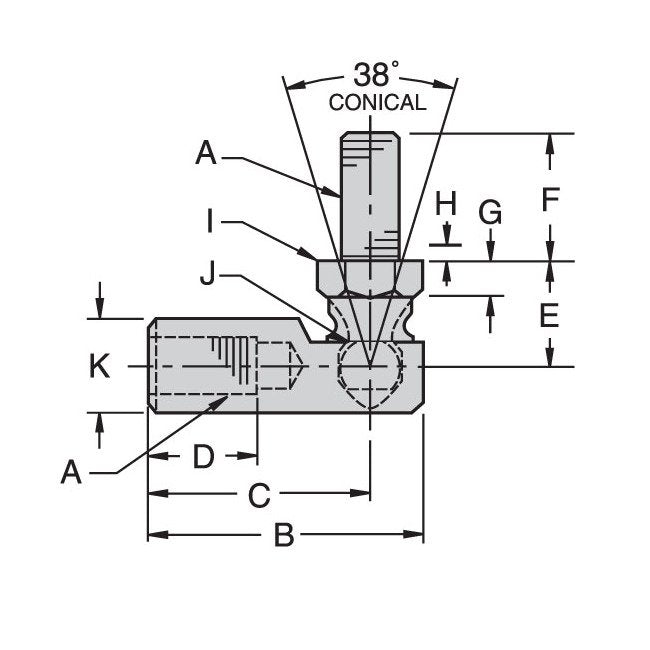

Specifications A Unf
5/16-24 "
Specifications B 0020
1.406 "
Specifications C 0020
1.125 "
Specifications D Min
0.562 "
Specifications E 0020
0.531 "
Specifications Force To Remove Ball Stud
1282 lb
Specifications F 0020
0.687 "
Specifications G Ref
0.156 "
Specifications H Ref
0.094 "
Specifications I Ref
0.437 "
Specifications J Ref
0.232 "
Specifications K Ref
0.500 "
Specifications Note
Ball Joint can be ordered without the grommet by dropping the "G" suffix. Example: R108LHR103G size is supplied with a wrap around grommet.
Specifications Temperature Range
-30 to 250 ºF | -34 to 121 ºC
Specifications Tensile Shear Strength
1587 lb
Specifications Wrench Flat Length
0.281 "
Specifications Wrench Flat Width
0.437 "
