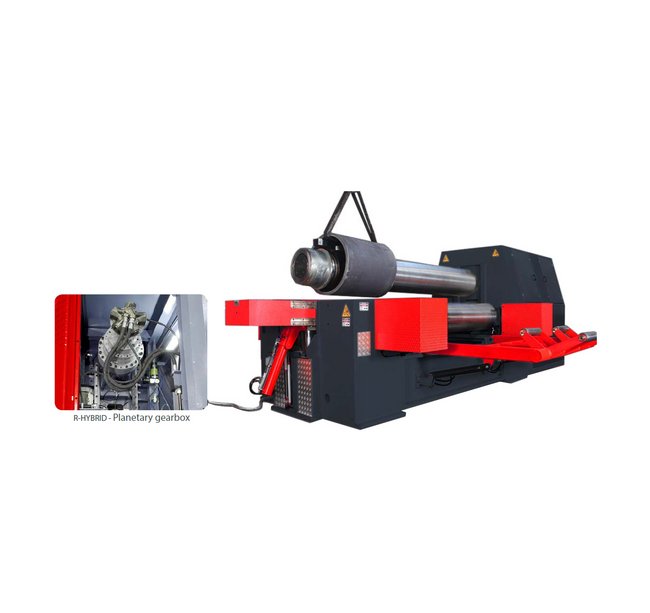

The R-HYBRID 14-1575 Plate Bending Machine, part of the prestigious R-HYBRID Series, redefines plate bending capabilities with its innovative variable-geometry design. This machine combines the precision of a press brake with the functionality of a plate roll, enabling extreme bending results. Suitable for medium to thick plates, it features a top roll diameter of 15.75 inches, hydraulic top roll operation, and a compact yet sturdy build, making it ideal for industrial applications. With advanced features like variable roll movement, dual speed control, and high-strength alloy steel rolls, the R-HYBRID 14-1575 ensures efficient bending performance with optimal precision and durability.
Product Specifications
Note
The mentioned values above is only works for 38 KSI yield point material.Different material types and plate widths; can be calculated with RMT Roll Bending Calculator.Conical bending capacities depends on cone angle and half value of mentioned values above.Weight and motor powers may increase with optional features.Due to ongoing product development, specifications may change at any time.
Optional Features
NC Control UnitAll axis positioning with adjustable speed on NC machinesAISI 4140 High strength alloy steel rollsGround rollsVariable speed controlWired or wireless remoteOil coolerOil heaterHydraulic side support system (both sides)Vertical overhead support systemPreparation for vertical support systemMaterial feeding table (Idle or motorized)Plate alignment unitSeparated power cabinChangeable top roll for smaller DiameterAutomatic central lubricationsAutomation systemSpecial roll crowningSpecial applications for wind tower production
Specifications Bending Length L2
14 ft 1 in.
Specifications Height H1
77 in
Specifications Hydraulic Tank Capacity L
106 gal
Specifications Length L1
274 in
Specifications Lower Roll Diameter
14.17 in
Specifications Main Motor Power
50 hp
Specifications Maximum Pass Through A
4 in
Specifications Minimum Interior Diameter D D X 15 Pre Bending Ca
1/2 in
Specifications Minimum Interior Diameter D D X 5 Bending Capacit
1 in
Specifications Minimum Interior Diameter D D X 5 Pre Bending Cap
5/8 in
Specifications Number Of Rolls
3
Specifications Top Roll Bending Force
176 Tons
Specifications Top Roll Diameter D
15.75 in
Specifications Total Width W2
106 in
Specifications Weight
52,706 lb
Specifications Width W1
65 in
Specifications Working Height H2
50 in
Standard Features
Variable geometry type rolls movement.PLC control unitDual speedCone bending with dual cone bending roller bearingInduction hardened rolls (HRC 54-58)AISI 1050 Carbon steel rolls machined by CNC Lathes with optimal crown (special crown upon request)Polished rollsTop and lower rolls electronically positioned and synchronized with PLC and high-end precision digital scalesHigh stroke top rollBraking system on side rollsProtected slide surfacesMachine body constructed of stress-relieved high yield steelRolls seated in spherical bearingsTop roll hydraulic opening device (drop end) with easy pull out systemTop roll driven with hydraulic motor and planetary gear boxSafety barrierElectrical and hydraulic protection against overloadsWorld standard electrical and hydraulic components (parts stocked by RMT or available off-the shelf from your local supplier)Adjustable hydraulic pressure on bottom roll (crowning compensation)Mobile control panelManual lubricationWelding possibility on the machine
