R-HYBRID 8-1575 Variable Geometry Three Rolls Bending Machine
R-HYBRID 8-1575 Variable Geometry Three Rolls Bending Machine
SKU:PLA-73c7b9
Redefine plate bending with the versatile R-HYBRID 8-1575 Hydraulic Three Rolls Bending Machine, ideal for medium to thick plate applications.
Regular price
$64,999.00
Regular price
Sale price
$64,999.00
Unit price
per
Initiate Order
R-HYBRID 8-1575 Variable Geometry Three Rolls Bending Machine
$64,999.00
Quantity: 1
Claim Your Seller Account
R-HYBRID 8-1575 Variable Geometry Three Rolls Bending Machine
$64,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

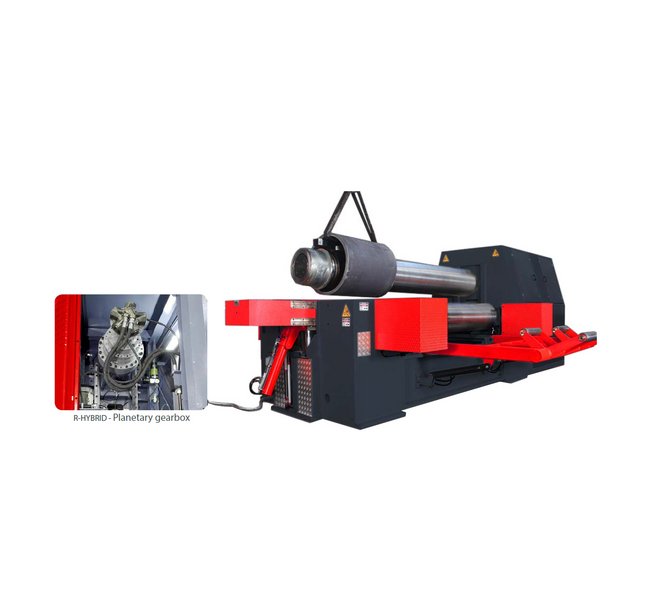

The R-HYBRID 8-1575 Variable Geometry Hydraulic Three Rolls Bending Machine redefines plate bending with its innovative variable-geometry design, operating akin to a press brake for extreme rolling capabilities. Featuring adjustable V die-like lower rolls and a top roll functional as a press brake ram, this machine combines versatility and precision. With a top roll diameter of 15.75 inches, maximum pass through of 4 inches, and top roll bending force of 231 tons, it is ideal for medium to thick plate bending applications. Induction hardened rolls, CNC-machined from AISI 1050 Carbon steel, ensure durability and accuracy, making it a reliable choice for industrial needs.
Product Specifications
Note
The mentioned values above is only works for 38 KSI yield point material.Different material types and plate widths; can be calculated with RMT Roll Bending Calculator.Conical bending capacities depends on cone angle and half value of mentioned values above.Weight and motor powers may increase with optional features.Due to ongoing product development, specifications may change at any time.
Optional Features
NC Control UnitAll axis positioning with adjustable speed on NC machinesAISI 4140 High strength alloy steel rollsGround rollsVariable speed controlWired or wireless remoteOil coolerOil heaterHydraulic side support system (both sides)Vertical overhead support systemPreparation for vertical support systemMaterial feeding table (Idle or motorized)Plate alignment unitSeparated power cabinChangeable top roll for smaller DiameterAutomatic central lubricationsAutomation systemSpecial roll crowningSpecial applications for wind tower production
Specifications Bending Length L2
8 ft 6 in.
Specifications Height H1
77 in
Specifications Hydraulic Tank Capacity L
106 gal
Specifications Length L1
215 in
Specifications Lower Roll Diameter
14.17 in
Specifications Main Motor Power
50 hp
Specifications Maximum Pass Through A
4 in
Specifications Minimum Interior Diameter D D X 15 Pre Bending Ca
1 in
Specifications Minimum Interior Diameter D D X 5 Bending Capacit
1 9/16 in
Specifications Minimum Interior Diameter D D X 5 Pre Bending Cap
1 3/16 in
Specifications Number Of Rolls
3
Specifications Top Roll Bending Force
231 Tons
Specifications Top Roll Diameter D
15.75 in
Specifications Total Width W2
106 in
Specifications Weight
40,786 lb
Specifications Width W1
65 in
Specifications Working Height H2
50 in
Standard Features
