R-HYBRID 8-1969 Variable Geometry Hydraulic Plate Bending Machine
R-HYBRID 8-1969 Variable Geometry Hydraulic Plate Bending Machine
SKU:PLA-1ae1a7
Achieve precise bending with the R-HYBRID 8-1969 Hydraulic Plate Bending Machine. Designed for medium to thick plates, this machine offers extreme rolling capabilities.
Regular price
$74,999.99
Regular price
Sale price
$74,999.99
Unit price
per
Initiate Order
R-HYBRID 8-1969 Variable Geometry Hydraulic Plate Bending Machine
$74,999.99
Quantity: 1
Claim Your Seller Account
R-HYBRID 8-1969 Variable Geometry Hydraulic Plate Bending Machine
$74,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience extreme rolling capabilities with the R-HYBRID 8-1969 Variable Geometry Hydraulic Plate Bending Machine. Operate it like a press brake with adjustable V die lower rolls and top roll functionality. Ideal for medium to thick plates, this machine offers precision bending with a top roll diameter of 19.69 inches and a top roll bending force of 352 tons. With features like a PLC control unit, dual speed, cone bending, and induction hardened rolls, this machine ensures efficient and accurate bending for various applications.
Product Specifications
Note
The mentioned values above is only works for 38 KSI yield point material.Different material types and plate widths; can be calculated with RMT Roll Bending Calculator.Conical bending capacities depends on cone angle and half value of mentioned values above.Weight and motor powers may increase with optional features.Due to ongoing product development, specifications may change at any time.
Optional Features
NC Control UnitAll axis positioning with adjustable speed on NC machinesAISI 4140 High strength alloy steel rollsGround rollsVariable speed controlWired or wireless remoteOil coolerOil heaterHydraulic side support system (both sides)Vertical overhead support systemPreparation for vertical support systemMaterial feeding table (Idle or motorized)Plate alignment unitSeparated power cabinChangeable top roll for smaller DiameterAutomatic central lubricationsAutomation systemSpecial roll crowningSpecial applications for wind tower production

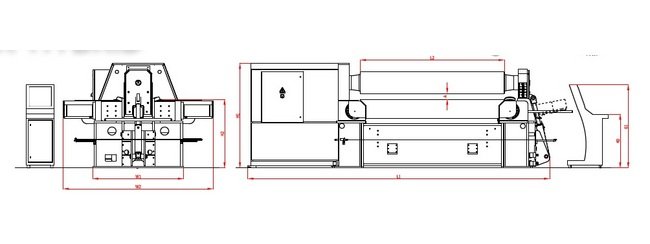

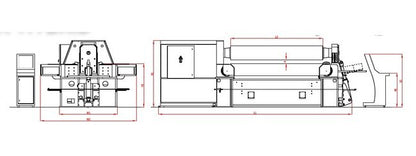

Specifications Bending Length L2
8 ft 6 in.
Specifications Height H1
94 in
Specifications Hydraulic Tank Capacity L
198 gal
Specifications Length L1
228 in
Specifications Lower Roll Diameter
18.11 in
Specifications Main Motor Power
75 hp
Specifications Maximum Pass Through A
5-3/8 in
Specifications Minimum Interior Diameter D D X 15 Pre Bending Ca
1-3/8 in
Specifications Minimum Interior Diameter D D X 5 Bending Capacit
2 5/32 in
Specifications Minimum Interior Diameter D D X 5 Pre Bending Cap
1 5/8 in
Specifications Number Of Rolls
3
Specifications Top Roll Bending Force
352 Tons
Specifications Top Roll Diameter D
19.69 in
Specifications Total Width W2
121 in
Specifications Weight
67,241 lb
Specifications Width W1
78 in
Specifications Working Height H2
61 in

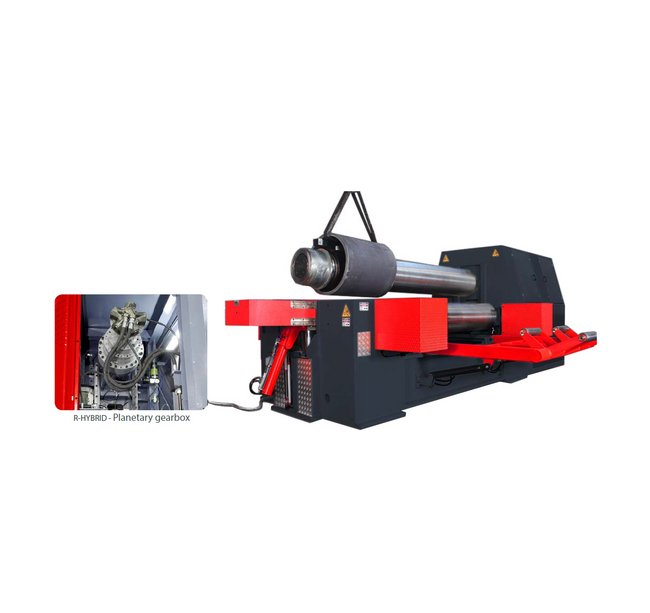

Standard Features
