Experience precision bending with the R-HYBRID Variable Geometry Hydraulic Three Roll Bending Machine. Perfect for medium-thick plate bending, with cutting-edge features and optional enhancements for tailored functionality.
Regular price
$78,999.00
Regular price
Sale price
$78,999.00
Unit price
per
Initiate Order
R-HYBRID Variable Geometry Hydraulic Three Roll Bending Machine - 19.69 in Top Diameter
$78,999.00
Quantity: 1
Claim Your Seller Account
R-HYBRID Variable Geometry Hydraulic Three Roll Bending Machine - 19.69 in Top Diameter
$78,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

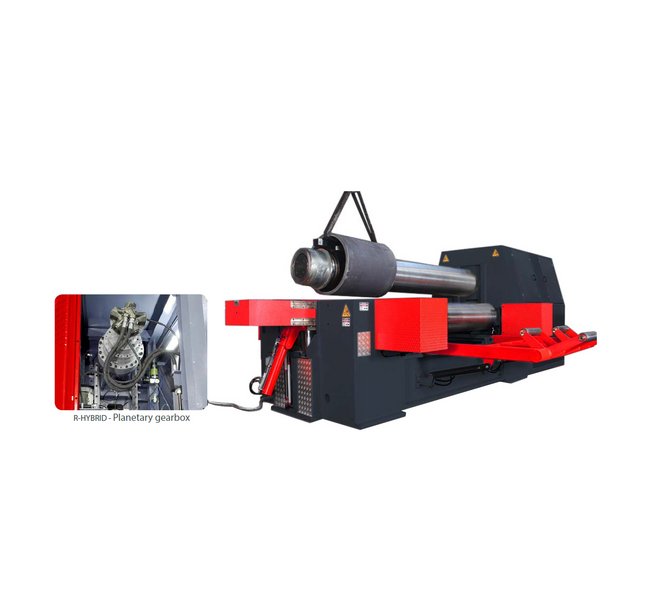

The R-HYBRID Variable Geometry Hydraulic Three Roll Bending Machine is a cutting-edge solution for medium and thick plate bending. Engineered with a unique variable-geometry design, this machine operates like a press brake, enabling extreme rolling capabilities. With a top roll diameter of 19.69 inches and a powerful 286-ton bending force, it offers precise control and flexibility for diverse bending applications. Featuring advanced PLC controls, dual speed settings, and induction-hardened rolls, this machine ensures optimal performance and efficiency. Built to uncompromising standards, it includes safety features, world-class components, and multiple optional enhancements for tailored functionality.
Product Specifications
Note
The mentioned values above is only works for 38 KSI yield point material.Different material types and plate widths; can be calculated with RMT Roll Bending Calculator.Conical bending capacities depends on cone angle and half value of mentioned values above.Weight and motor powers may increase with optional features.Due to ongoing product development, specifications may change at any time.
Optional Features
NC Control UnitAll axis positioning with adjustable speed on NC machinesAISI 4140 High strength alloy steel rollsGround rollsVariable speed controlWired or wireless remoteOil coolerOil heaterHydraulic side support system (both sides)Vertical overhead support systemPreparation for vertical support systemMaterial feeding table (Idle or motorized)Plate alignment unitSeparated power cabinChangeable top roll for smaller DiameterAutomatic central lubricationsAutomation systemSpecial roll crowningSpecial applications for wind tower production

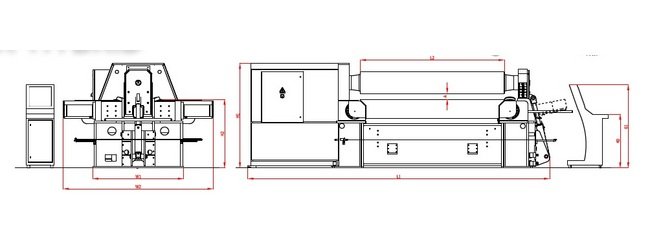

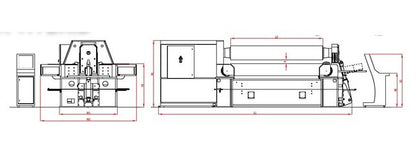

Specifications Bending Length L2
12 ft 1 in.
Specifications Height H1
94 in
Specifications Hydraulic Tank Capacity L
198 gal
Specifications Length L1
287 in
Specifications Lower Roll Diameter
18.11 in
Specifications Main Motor Power
75 hp
Specifications Maximum Pass Through A
5-3/8 in
Specifications Minimum Interior Diameter D D X 15 Pre Bending Ca
1 in
Specifications Minimum Interior Diameter D D X 5 Bending Capacit
1 9/16 in
Specifications Minimum Interior Diameter D D X 5 Pre Bending Cap
1 3/16 in
Specifications Number Of Rolls
3
Specifications Top Roll Bending Force
286 Tons
Specifications Top Roll Diameter D
19.69 in
Specifications Total Width W2
121 in
Specifications Weight
77,264 lb
Specifications Width W1
78 in
Specifications Working Height H2
61 in
Standard Features
Variable geometry type rolls movement.PLC control unitDual speedCone bending with dual cone bending roller bearingInduction hardened rolls (HRC 54-58)AISI 1050 Carbon steel rolls machined by CNC Lathes with optimal crown (special crown upon request)Polished rollsTop and lower rolls electronically positioned and synchronized with PLC and high-end precision digital scalesHigh stroke top rollBraking system on side rollsProtected slide surfacesMachine body constructed of stress-relieved high yield steelRolls seated in spherical bearingsTop roll hydraulic opening device (drop end) with easy pull out systemTop roll driven with hydraulic motor and planetary gear boxSafety barrierElectrical and hydraulic protection against overloadsWorld standard electrical and hydraulic components (parts stocked by RMT or available off-the shelf from your local supplier)Adjustable hydraulic pressure on bottom roll (crowning compensation)Mobile control panelManual lubricationWelding possibility on the machine
