R-Hybrid Variable Geometry Hydraulic Three Rolls Bending Machine
R-Hybrid Variable Geometry Hydraulic Three Rolls Bending Machine
SKU:PLA-232871
Revolutionize plate bending with the R-Hybrid Variable Geometry Bending Machine. Extreme rolling capabilities for medium and thick plates with precision and efficiency.
Regular price
$89,999.00
Regular price
Sale price
$89,999.00
Unit price
per
Initiate Order
R-Hybrid Variable Geometry Hydraulic Three Rolls Bending Machine
$89,999.00
Quantity: 1
Claim Your Seller Account
R-Hybrid Variable Geometry Hydraulic Three Rolls Bending Machine
$89,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

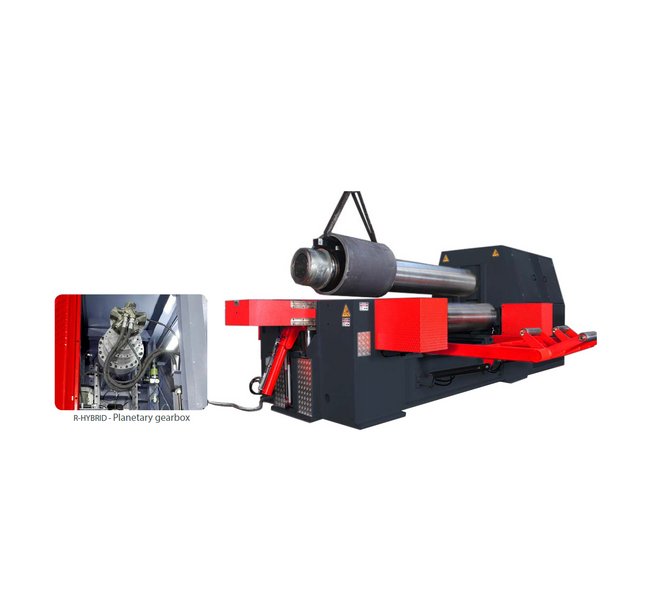

The R-Hybrid Variable Geometry Hydraulic Three Rolls Bending Machine revolutionizes plate bending with its unique variable-geometry design that functions akin to a press brake. Ideal for medium and thick plate bending, this machine offers extreme rolling capabilities. With top-notch features like adjustable V die-like lower rolls, a top roll that operates similar to a press brake ram, and a powerful 220-ton top roll bending force, precision and efficiency are guaranteed. Its PLC control unit, dual speed, cone bending capability, and induction-hardened rolls ensure top performance. Crafted from high-quality materials and equipped with safety features, the R-Hybrid is a game-changer for bending applications.
Product Specifications
Note
The mentioned values above is only works for 38 KSI yield point material.Different material types and plate widths; can be calculated with RMT Roll Bending Calculator.Conical bending capacities depends on cone angle and half value of mentioned values above.Weight and motor powers may increase with optional features.Due to ongoing product development, specifications may change at any time.
Optional Features
NC Control UnitAll axis positioning with adjustable speed on NC machinesAISI 4140 High strength alloy steel rollsGround rollsVariable speed controlWired or wireless remoteOil coolerOil heaterHydraulic side support system (both sides)Vertical overhead support systemPreparation for vertical support systemMaterial feeding table (Idle or motorized)Plate alignment unitSeparated power cabinChangeable top roll for smaller DiameterAutomatic central lubricationsAutomation systemSpecial roll crowningSpecial applications for wind tower production

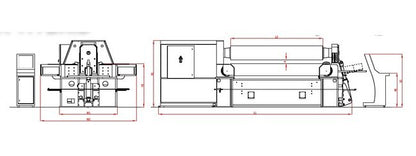

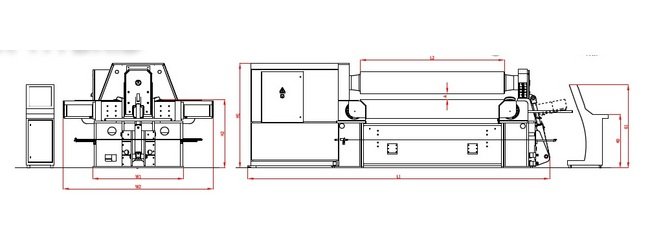

Specifications Bending Length L2
14 ft 1 in.
Specifications Height H1
86 in
Specifications Hydraulic Tank Capacity L
159 gal
Specifications Length L1
280 in
Specifications Lower Roll Diameter
16.54 in
Specifications Main Motor Power
60 hp
Specifications Maximum Pass Through A
4-3/4 in
Specifications Minimum Interior Diameter D D X 15 Pre Bending Ca
3/4 in
Specifications Minimum Interior Diameter D D X 5 Bending Capacit
1-1/8 in
Specifications Minimum Interior Diameter D D X 5 Pre Bending Cap
7/8 in
Specifications Number Of Rolls
3
Specifications Top Roll Bending Force
220 Tons
Specifications Top Roll Diameter D
17.72 in
Specifications Total Width W2
114 in
Specifications Weight
61,084 lb
Specifications Width W1
73 in
Specifications Working Height H2
57 in
Standard Features
Variable geometry type rolls movement.PLC control unitDual speedCone bending with dual cone bending roller bearingInduction hardened rolls (HRC 54-58)AISI 1050 Carbon steel rolls machined by CNC Lathes with optimal crown (special crown upon request)Polished rollsTop and lower rolls electronically positioned and synchronized with PLC and high-end precision digital scalesHigh stroke top rollBraking system on side rollsProtected slide surfacesMachine body constructed of stress-relieved high yield steelRolls seated in spherical bearingsTop roll hydraulic opening device (drop end) with easy pull out systemTop roll driven with hydraulic motor and planetary gear boxSafety barrierElectrical and hydraulic protection against overloadsWorld standard electrical and hydraulic components (parts stocked by RMT or available off-the shelf from your local supplier)Adjustable hydraulic pressure on bottom roll (crowning compensation)Mobile control panelManual lubricationWelding possibility on the machine
