R4 Chipbreaker Diamond Negative Utility Tool with Hole, 0.260/0.266 in Thickness
R4 Chipbreaker Diamond Negative Utility Tool with Hole, 0.260/0.266 in Thickness
SKU:TUR-d63c7c
Maximize machining efficiency with the R4 Chipbreaker Diamond Negative Tool for precise roughing operations.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
R4 Chipbreaker Diamond Negative Utility Tool with Hole, 0.260/0.266 in Thickness
$59.99
Quantity: 1
Claim Your Seller Account
R4 Chipbreaker Diamond Negative Utility Tool with Hole, 0.260/0.266 in Thickness
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

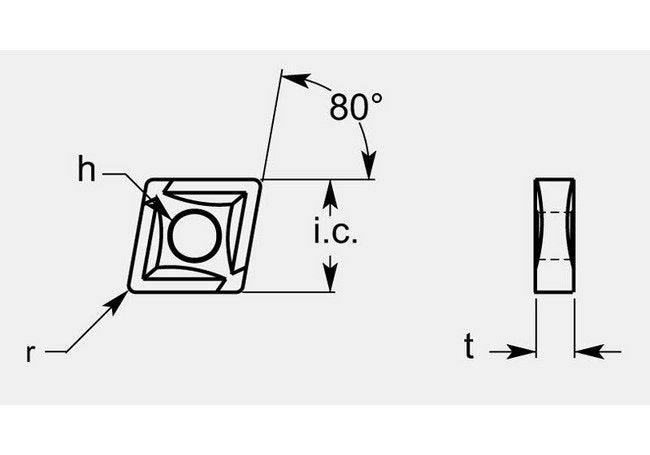

The Utility Diamond Negative R4 Chipbreaker with Hole is a premium turning blank designed for roughing operations. With a precise thickness range of 0.260 to 0.266 inches, an inscribed circle of 0.747 to 0.753 inches, an 80° angle, and a hole diameter of 0.309 to 0.315 inches, this tool ensures high-performance machining. Suitable for both consumer and institutional buyers, this chipbreaker offers exceptional durability and accuracy. Moreover, grade availability can be customized as per requirements.
Product Specifications
Classifications Operation
Roughing
Dimensional Specification Angle A
80 º
Dimensional Specification Hole
0.309 / 0.315 in
Dimensional Specification Inscribed Circle Ic
0.747/0.753 in
Dimensional Specification Radius R
3/64 in
Dimensional Specification Thickness T
0.260 / 0.266 in
Grade Availability Grade Availability
Available on Request
