Radius-Head Angle Pins for Precise Installations
Radius-Head Angle Pins for Precise Installations
SKU:ANG-a84d20
Effortlessly precise installations with Radius-Head Angle Pins crafted from durable H-13 steel. Upgrade now!
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Radius-Head Angle Pins for Precise Installations
$24.99
Quantity: 1
Claim Your Seller Account
Radius-Head Angle Pins for Precise Installations
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

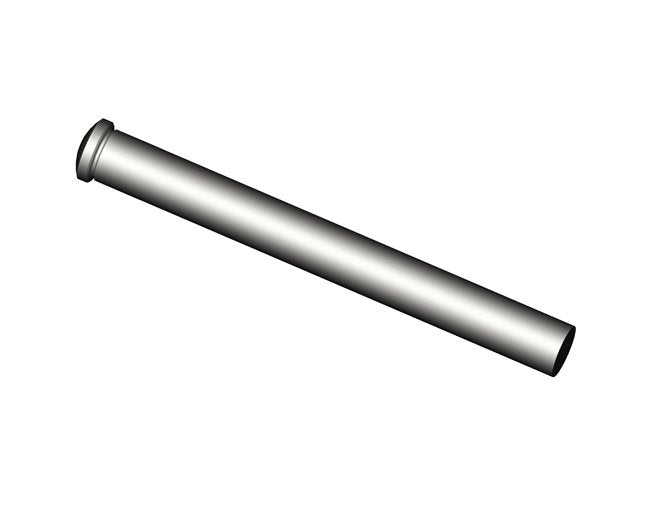

Upgrade your installation process with our Radius-Head Angle Pins crafted from H-13 steel. These angle pins feature a pre-machined spherical radius head, eliminating the need for time-consuming angle grinding. With surface hardness of 65-64 Rc and core hardness of 35-40 Rc, our pins ensure durability and precision. Cut to length as needed for customized travel on the slide, these pins effortlessly create smooth and accurate movements. Enhance your workflow with the reliability and efficiency of our Angle Pins.
Product Specifications
Features 0
Manufactured from H-13 steelSurface hardness 65-64 RcCore hardness 35-40 RcGround, nitrided and polished

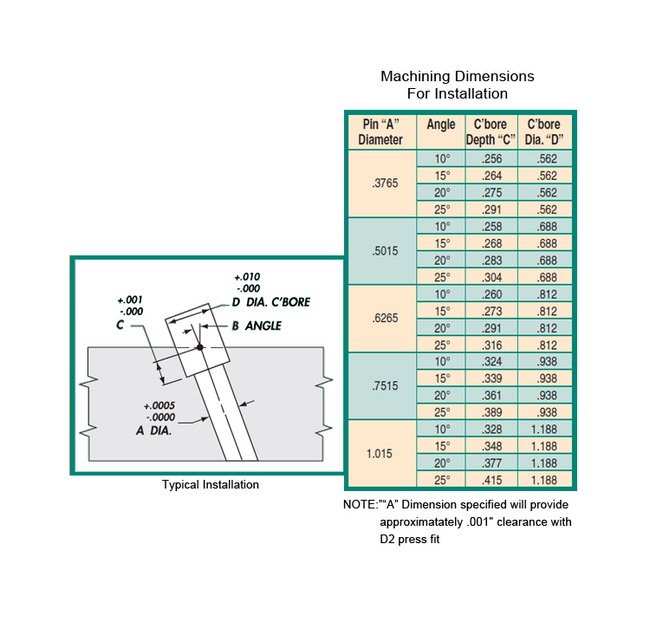

Installation Notes 0
Cut angle pin to length as required to obtain required travel on the slide. The angle pin works on angle in clearance hole in slide to push the slide & create travel.

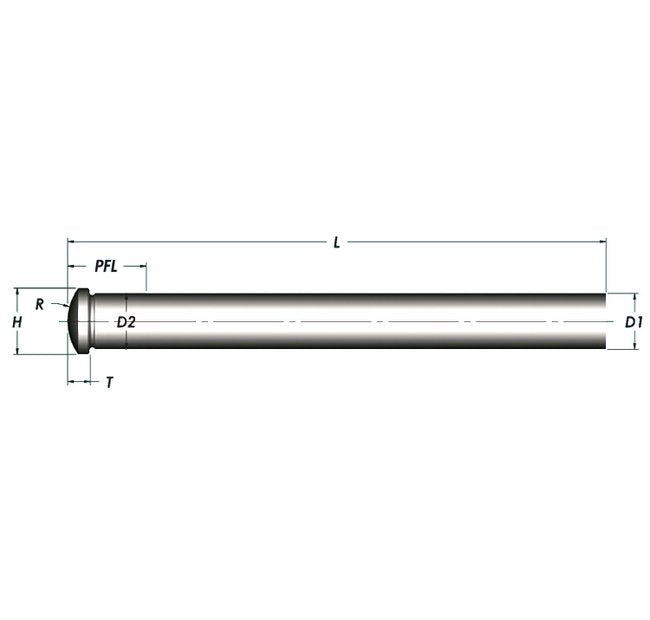

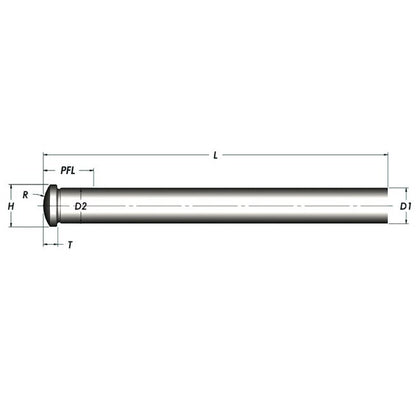

Specifications Core Hardness
35-40 Rockwell C
Specifications Diameter 00000 00005
0.4990 in
Specifications Dimension D2 00000 00005
0.5015 in
Specifications Dimension H 0000 0010
0.625 in
Specifications Dimension L 050 000
10 in
Specifications Dimension Pfl 000 006
1-3/8 in
Specifications Dimension R Sph Rad
0.500 in
Specifications Dimension T 0000 0005
0.250 in
Specifications Manufacturer
DMS
Specifications Material
H-13 Steel
Specifications Surface Hardness
65-64 Rockwell C
