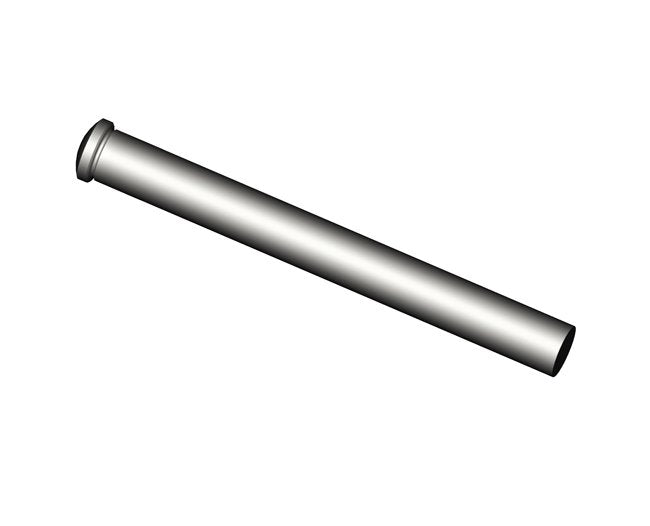

Radius-Headed Angle Pin for Precision Installations
Radius-Headed Angle Pin for Precision Installations
SKU:ANG-c6f48a
Upgrade to our Radius-Headed Angle Pin for precise installations. Made from durable H-13 steel with pre-machined radiused heads, no angle grinding required.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Radius-Headed Angle Pin for Precision Installations
$29.99
Quantity: 1
Claim Your Seller Account
Radius-Headed Angle Pin for Precision Installations
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your installations with our Radius-Headed Angle Pin, featuring pre-machined radiused heads to eliminate the need for angle grinding. Made from H-13 steel, this pin offers exceptional durability with a surface hardness of 65-64 Rc and core hardness of 35-40 Rc. Ground, nitrided, and polished for precision, it ensures reliable performance in industrial applications. Cut to custom lengths for precise slide travel. Upgrade to our angle pin for efficient and accurate installations that meet institutional procurement standards.
Product Specifications
Features 0
Manufactured from H-13 steelSurface hardness 65-64 RcCore hardness 35-40 RcGround, nitrided and polished
Installation Notes 0

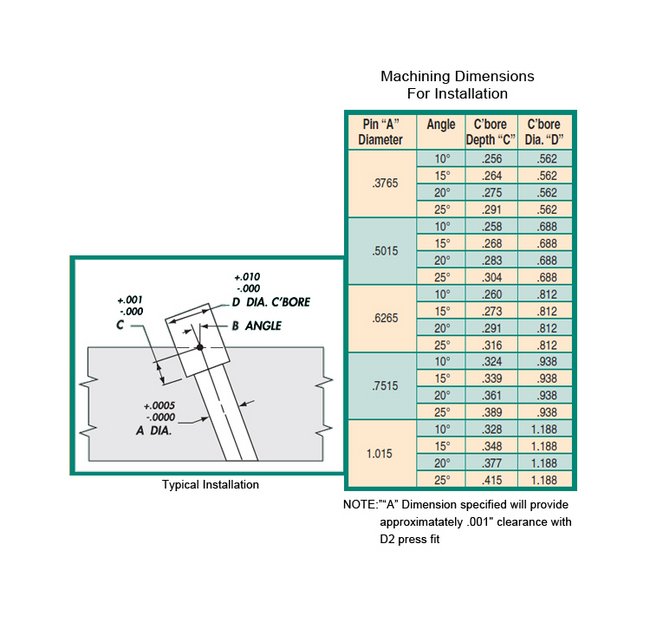

Cut angle pin to length as required to obtain required travel on the slide. The angle pin works on angle in clearance hole in slide to push the slide & create travel.
Specifications Core Hardness
35-40 Rockwell C

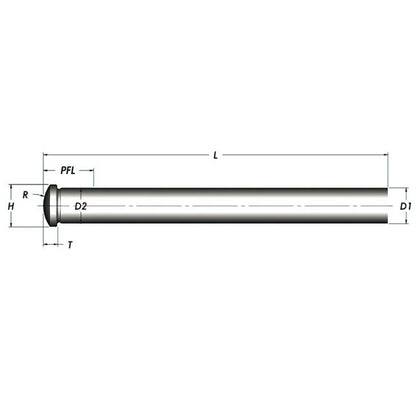

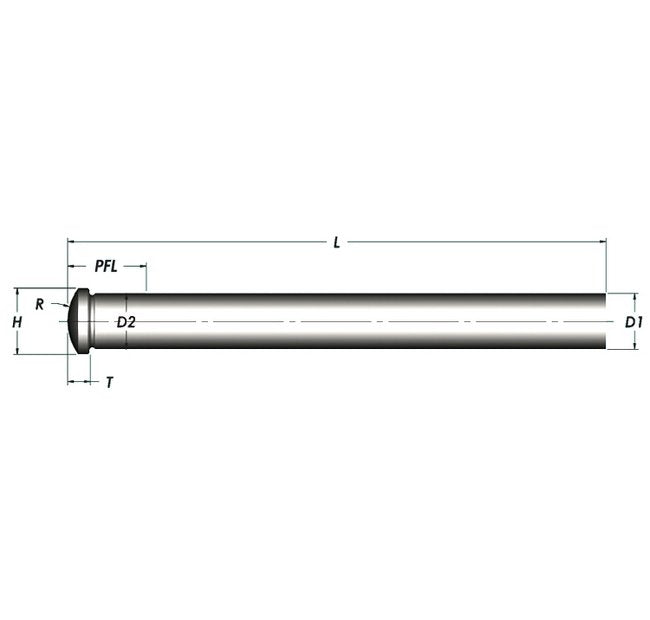

Specifications Diameter 00000 00005
0.3740 in
Specifications Dimension D2 00000 00005
0.3765 in
Specifications Dimension H 0000 0010
0.500 in
Specifications Dimension L 050 000
6 in
Specifications Dimension Pfl 000 006
7/8 in
Specifications Dimension R Sph Rad
0.375 in
Specifications Dimension T 0000 0005
0.250 in
Specifications Manufacturer
DMS
Specifications Material
H-13 Steel
Specifications Surface Hardness
65-64 Rockwell C
