Radius-Headed Angle Pins for Precision Installation
Radius-Headed Angle Pins for Precision Installation
SKU:ANG-86aade
Upgrade your installations with our Radius-Headed Angle Pins. Made from H-13 steel, pre-machined heads for easy installation.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Radius-Headed Angle Pins for Precision Installation
$24.99
Quantity: 1
Claim Your Seller Account
Radius-Headed Angle Pins for Precision Installation
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

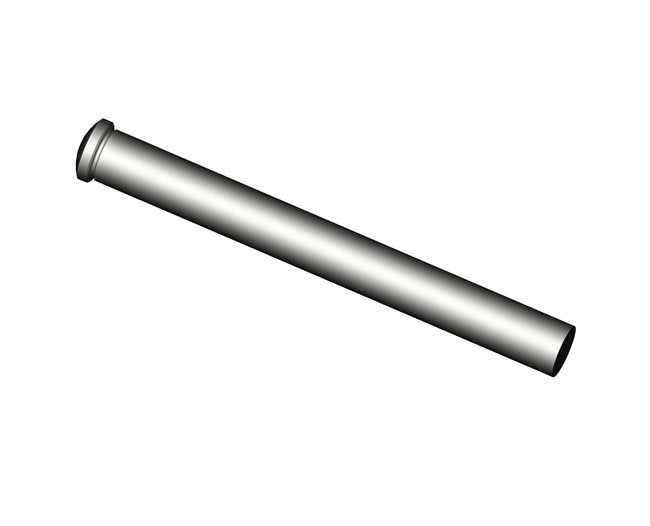

Enhance precision in angle installations with our Radius-Headed Angle Pins. Made from H-13 steel with a surface hardness of 65-64 Rc and core hardness of 35-40 Rc, these pins are ground, nitrided, and polished for durability. The radiused heads eliminate the need for angle grinding, streamlining installation and ensuring a perfect fit. Cut to custom lengths for tailored slide travel, these pins promise reliable performance and ease of use for a wide range of applications.
Product Specifications
Features 0
Manufactured from H-13 steelSurface hardness 65-64 RcCore hardness 35-40 RcGround, nitrided and polished
Installation Notes 0

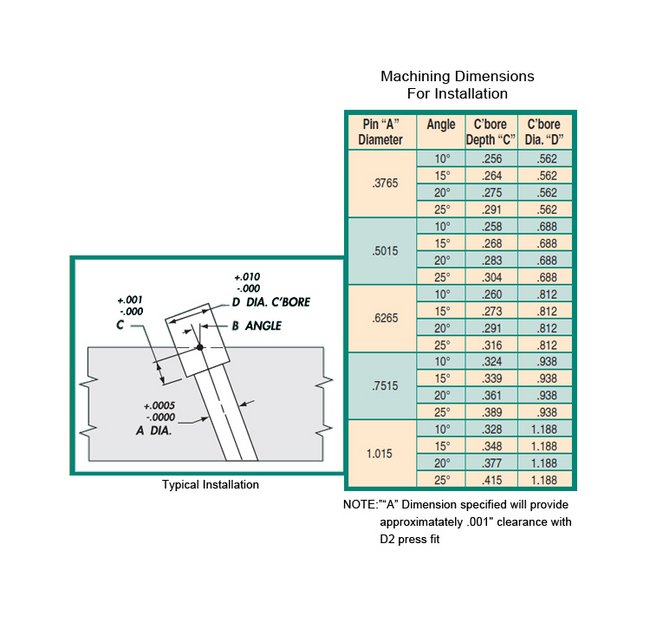

Cut angle pin to length as required to obtain required travel on the slide. The angle pin works on angle in clearance hole in slide to push the slide & create travel.

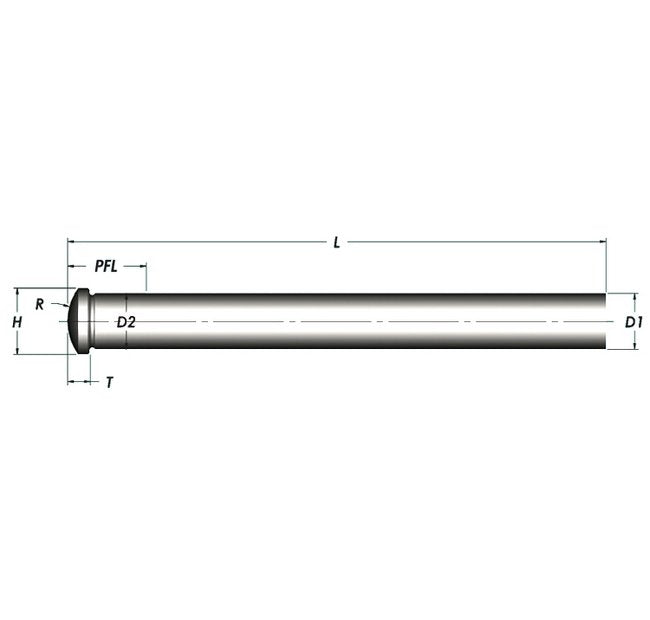

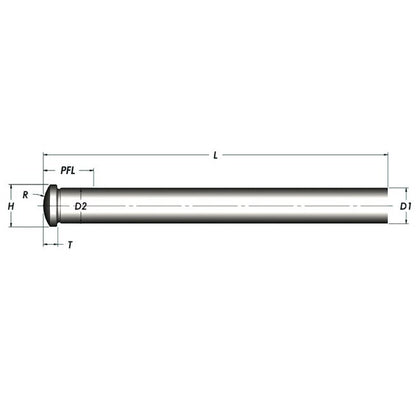

Specifications Core Hardness
35-40 Rockwell C
Specifications Diameter 00000 00005
0.6240 in
Specifications Dimension D2 00000 00005
0.6265 in
Specifications Dimension H 0000 0010
0.750 in
Specifications Dimension L 050 000
6 in
Specifications Dimension Pfl 000 006
7/8 in
Specifications Dimension R Sph Rad
0.625 in
Specifications Dimension T 0000 0005
0.250 in
Specifications Manufacturer
DMS
Specifications Material
H-13 Steel
Specifications Surface Hardness
65-64 Rockwell C
