Radius V-Bend POD-312-80A Pads

Name: Radius V-Bend POD-312-80A Pads
Brand: Polyurethane Products Corp.
SKU: SQU-ceb5d6
Price: 29.99 USD
Availability: OutOfStock

SKU:SQU-ceb5d6

Precision molded POD-312-80A Pads for precise V-bend forming, stress relief hole, and ASTM Steel C-Channel compatibility.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

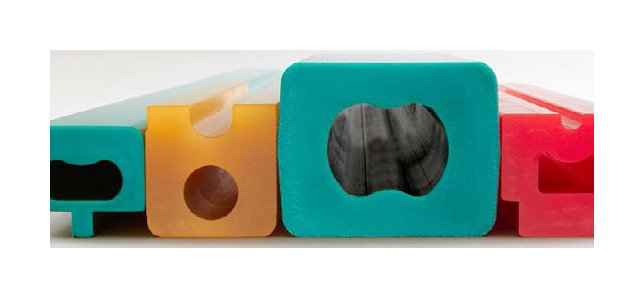

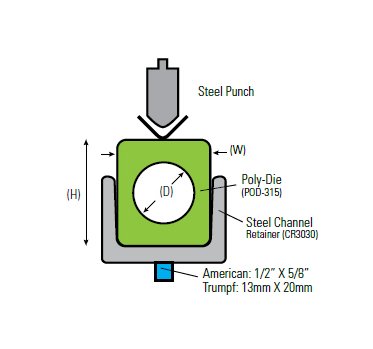

The Radius V-Bend POD-312-80A Pads are square and rectangular pads with a flat top, specially crafted for bending sharp or radiused V-bends. These pads feature a molded stress relief hole along their full length, reducing required tonnage. Designed to seamlessly fit into standard ASTM Steel C-Channels as retainers or holders, they come in various deflections and a durable 80A duro hardness. With dimensions of 3.0 inches in width and height, a hole diameter of 1.25 inches, and suitable for 10 ga gauge capacity for 90-V bends and 1/2-inch size for 90-Radius bends. The included retainer part number is CR3030.

Product Specifications

Specifications Color

Green

Specifications Deflections

35 %

Specifications Gauge Capacity Fo 90 V

10 ga

Specifications Hardness

80A duro

Specifications Hole Diameter

1.25 in

Specifications Number Of Forming Surfaces

Specifications Pad Height

3.0 in

Specifications Pad Width

3.0 in

Specifications Retainer Part Number

CR3030

Specifications Size For 90 Radius

1/2 in

Radius V-Bend POD-312-80A Pads
