Ranger High-Efficiency Rotary Gear Pump
Ranger High-Efficiency Rotary Gear Pump
SKU:POS-5878a4
Experience versatility and reliability with the Ranger High-Efficiency Rotary Gear Pump. Built for durability and efficiency, this pump meets industry standards for optimal performance.
Regular price
$2,699.99
Regular price
Sale price
$2,699.99
Unit price
per
Initiate Order
Ranger High-Efficiency Rotary Gear Pump
$2,699.99
Quantity: 1
Claim Your Seller Account
Ranger High-Efficiency Rotary Gear Pump
$2,699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

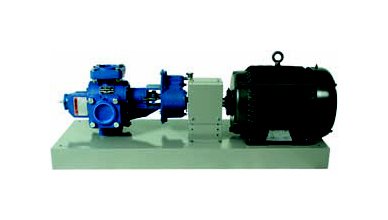

The Ranger High-Efficiency Rotary Gear Pump is a versatile solution designed to meet the rigorous demands of industrial applications. Constructed with hardened iron alloy for durability, this pump boasts modular rotatable port configurations and ultra-flex gear reducer technology, ensuring seamless integration and performance. Its high efficiency helical gear construction, interchangeable parts, and internal bypass relief valves make it a reliable choice for handling varying viscosities. With a range of motor options and mounting configurations, this pump offers flexibility and reliability for your fluid transfer needs.
Product Specifications
Specifications Coupling
Flex | V-Belt
Specifications Discharge
3 in | 4 in
Specifications Driver
AC Motor | Air Motor | DC Motor | Engine | Hydraulic Motor
Specifications Equivalent
Albany | Gorman Rupp | Johnson | Oberdorfer | Roper | Rotan | Tuthill | Viking
Specifications Gal Rev
0.22
Specifications Hp
1.5 | 10 | 15 | 2 | 20 | 3 | 5 | 7.5
Specifications Hz
50 | 60 | DC
Specifications Manufacturer
Ranger
Specifications Material
Hardened Iron Alloy
Specifications Max Gpm
165 gpm
Specifications Max Pressure Psi
125 psi
Specifications Max Rpm
750
Specifications Min Gpm
11 gpm
Specifications Min Rpm
50
Specifications Mounting
Base | Foot
Specifications Phase
1 | 3
Specifications Port Config
In Line
Specifications Port Type
Flange | FNPT
Specifications Suction
3 in | 4 in
Specifications Voltage
110 | 12 | 180 | 190 | 200 | 230 | 24 | 380 | 460 | 575 | 90 | 995
