Ranger Modular Rotary Gear Pump

Name: Ranger Modular Rotary Gear Pump
Brand: AB Industrial
SKU: POS-be5702
Price: 1499.99 USD
Availability: OutOfStock

SKU:POS-be5702

Explore the versatile Ranger Modular Rotary Gear Pump for efficient fluid handling. Interchangeable with Roper & more, it delivers 11-165 gpm at 125 psi.

$1,499.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

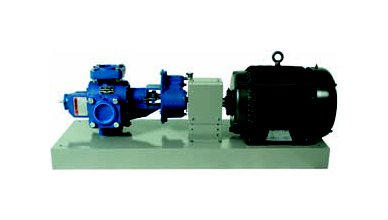

The Ranger Modular Rotary Gear Pump offers exceptional flexibility and interchangeability, meeting industry standards with precision. Crafted from hardened iron alloy, this pump features modular construction for seamless integration with Roper and various other pumps. With a range of port configurations, relief valves, and motor drive options, it ensures efficient performance from 11 to 165 gpm at up to 125 psi. Whether powered by AC, DC, air, or hydraulic motors, this pump is a reliable choice for diverse applications.

Product Specifications

Specifications Coupling

Flex | V-Belt

Specifications Discharge

3 in | 4 in

Specifications Driver

AC Motor | Air Motor | DC Motor | Engine | Hydraulic Motor

Specifications Equivalent

Specifications Gal Rev

0.22

Specifications Hp

1.5 | 10 | 15 | 2 | 20 | 3 | 5 | 7.5

Specifications Hz

50 | 60 | DC

Specifications Manufacturer

Ranger

Specifications Material

Hardened Iron Alloy

Specifications Max Gpm

165 gpm

Specifications Max Pressure Psi

125 psi

Specifications Max Rpm

750

Specifications Min Gpm

11 gpm

Specifications Min Rpm

Specifications Mounting

Base | Foot

Specifications Phase

1 | 3

Specifications Port Config

In Line

Specifications Port Type

Flange | FNPT

Specifications Suction

3 in | 4 in

Specifications Voltage

110 | 12 | 180 | 190 | 200 | 230 | 24 | 380 | 460 | 575 | 90 | 995

Ranger Modular Rotary Gear Pump
