Rapid Change KSF Power Chucks - Precision Chucking Solution
Rapid Change KSF Power Chucks - Precision Chucking Solution
SKU:KSF-1ce5ad
Experience precision and performance with Rapid Change KSF Power Chucks - ideal for accurate machining operations.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Rapid Change KSF Power Chucks - Precision Chucking Solution
$2,899.99
Quantity: 1
Claim Your Seller Account
Rapid Change KSF Power Chucks - Precision Chucking Solution
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

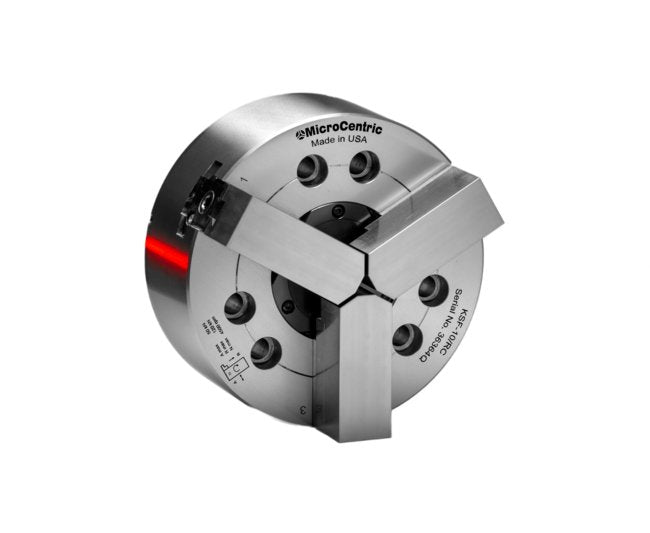

The Rapid Change KSF Power Chucks are engineered with a patented RC Rapid Change Jaw System for seamless precision. With hardened chuck components, these chucks offer unmatched accuracy and performance for long-term use. Featuring a jaw system that minimizes jaw lift and a repeating accuracy of .0004 inches (0.01mm) TIR, these chucks ensure reliability and consistency in machining operations. With a chuck diameter of 10 inches (254mm) and a maximum speed of 4,500 rpm, these chucks deliver exceptional gripping power and efficiency.
Product Specifications
Specifications Actuator Stroke
0.787 in | 20 mm
Specifications Chuck Diameter
10 in | 254 mm
Specifications Chuck Weight
88.2 lb | 40 kg
Specifications Jaw Stroke
0.335 in | 8.5 mm
Specifications Jaw System
Rapid Change
Specifications Max Clamp Force
26,970 lbs | 120 kN
Specifications Max Draw Tube Force
11,240 lbs | 50 kN
Specifications Max Speed
4,500 rpm
Specifications Moment Of Inertia
31.09 lb-ft² | 1.31 kg-m²
Specifications Number Of Jaws
3
Specifications Repeating Accuracy
0.0004 in | 0.01 mm
Specifications Through Hole
3.228 in | 82 mm
Standard Equipment 0
Threaded draw tube adapters are furnished on request A2-6, A2-6, A2-8, and various flat, threaded, and tapered nose spindle mounting plates are available on request.
Threaded Draw Tube Adapters Spindle Mounting Plates 0
Threaded draw tube adapters are furnished on request A2-6, A2-6, A2-8, and various flat, threaded, and tapered nose spindle mounting plates are available on request.
