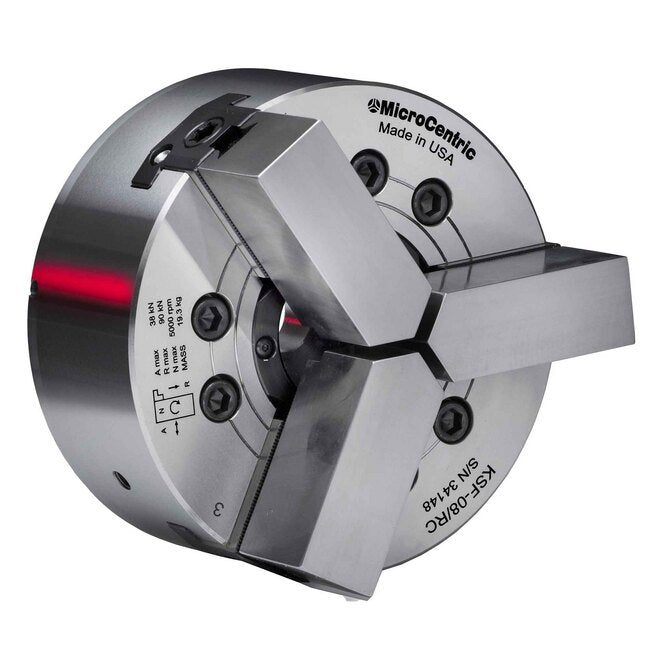

Experience unparalleled precision with the Rapid Change KSF Power Chucks. Featuring the patented RC Rapid Change Jaw System, these chucks boast a hardened body for long-term accuracy. With a repeating accuracy of 0.0004 inches (0.01 mm) TIR, these chucks ensure consistent performance. The chuck's robust design includes hardened actuators and master jaws to minimize jaw lift, providing reliable and efficient clamping for various applications. With a chuck diameter of 8.25 inches (210 mm) and a maximum clamp force of 21,130 lbs (94 kN), these chucks are built to meet the demanding needs of industrial operations.
Product Specifications
Specifications Actuator Stroke
0.709 in | 18 mm
Specifications Chuck Diameter
8.25 in | 210 mm
Specifications Chuck Weight
52 lb | 23.6 kg
Specifications Jaw Stroke
0.299 in | 7.6 mm
Specifications Jaw System
Rapid Change
Specifications Max Clamp Force
21,130 lbs | 94 kN
Specifications Max Draw Tube Force
8,540 lbs | 38 kN
Specifications Max Speed
5,000 rpm
Specifications Moment Of Inertia
13.5 lb-ft² | 0.57 kg-m²
Specifications Number Of Jaws
3
Specifications Repeating Accuracy
0.0004 in | 0.01 mm
Specifications Through Hole
2.598 in | 66 mm
Standard Equipment 0
Threaded draw tube adapters are furnished on request A2-6, A2-6, A2-8, and various flat, threaded, and tapered nose spindle mounting plates are available on request.
Threaded Draw Tube Adapters Spindle Mounting Plates 0
Threaded draw tube adapters are furnished on request A2-6, A2-6, A2-8, and various flat, threaded, and tapered nose spindle mounting plates are available on request.
