RB82046 Stainless Steel Orifice Union - 0.0350" I.D. & 0.060" O.D.
RB82046 Stainless Steel Orifice Union - 0.0350" I.D. & 0.060" O.D.
SKU:ORI-88387b
Precision-engineered Stainless Steel Orifice Union for face seal applications with versatile orifice sizes and Sharp Edge Ruby Straight-Hole design.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
RB82046 Stainless Steel Orifice Union - 0.0350" I.D. & 0.060" O.D.
$29.99
Quantity: 1
Claim Your Seller Account
RB82046 Stainless Steel Orifice Union - 0.0350" I.D. & 0.060" O.D.
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

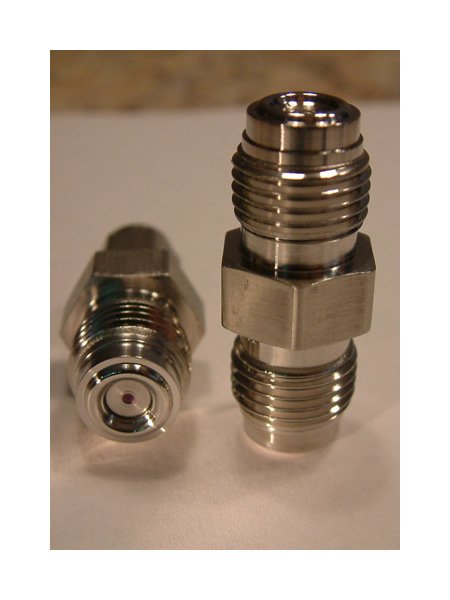

The RB82046 Series Stainless Steel Orifice Union is a precision-engineered fitting designed for face seal applications, ideal for elevated pressure scenarios. This double male union ensures a secure fit, allowing for seamless flow control. With orifice sizes ranging from 0.0004" to 0.081", this union offers versatility in pressure range compatibility. The Sharp Edge Ruby Straight-Hole orifice style guarantees high precision with laser-drilled and wire-lapped technology, ensuring roundness, sharp edges, and exceptional surface finish for low flow, accuracy, and repeatability. Explore the micron series starting at 7.5 microns for fine-tuned performance.
Product Specifications
Additional Information Additional Information
This Sharp Edge Ruby Orifice series is laser drilled and wire lapped to insure Roundness, surface finish and sharp edges.This orifice series is a good choice where the designer requires low flow, accuracy and repeatability. This orifice series has a complete micron series starting at 7.5 microns.
Specifications Diameter
1/4 in
Specifications Material
Stainless Steel
Specifications Orifice Inner Diameter Id
0.0350 in
Specifications Orifice Outer Diameter Od
0.060 in
Specifications Orifice Style
Sharp Edge Ruby Straight-Hole
Specifications Product Style
Union
Specifications Product Type
Orifice Connectors Fittings
Specifications Series
RB82046
Specifications Suggested Pressures
0.060 O.D. - Low Pressure (Under 150 psi) | 0.118 O.D. - Medium Pressure (5000 psi or lower) | 0.087 O.D. - High Pressure (Above 5000 psi)
