RB82087 Series Stainless Steel Gland/Gasket Connector Orifice

Name: RB82087 Series Stainless Steel Gland/Gasket Connector Orifice
Brand: Bird Precision
SKU: ORI-025ad0
Price: 24.99 USD
Availability: OutOfStock

SKU:ORI-025ad0

Reliable RB82087 Series Stainless Steel Gland/Gasket Connector Orifice for precision sealing in stainless tube applications.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

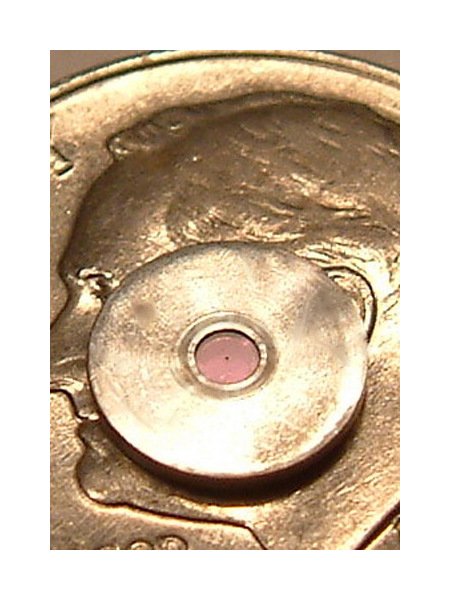

The RB82087 Series Stainless Steel Gland/Gasket Connector Orifice is expertly designed to provide a secure face seal connection for stainless tube applications. These precision-engineered discs seamlessly form reliable seals against both faces when assembled, ensuring leak-free performance. With an inner diameter (I.D.) of 0.0045 inches and a diameter of 0.260 inches, this orifice boasts a Sharp Edge Ruby Straight-Hole design, making it ideal for applications requiring low flow, accuracy, and repeatability. The laser-drilled and wire-lapped construction guarantees roundness, superior surface finish, and sharp edges, offering unparalleled quality and performance.

Product Specifications

Additional Information Additional Information

For 1/8 VCR, stainless tube applications the standard material is stainless.This Sharp Edge Ruby Orifice series is laser drilled and wire lapped to insure Roundness, surface finish and sharp edges.This orifice series is a good choice where the designer requires low flow, accuracy and repeatability. This orifice series has a complete micron series starting at 7.5 microns.

Specifications Diameter

0.260 in

Specifications Material

Stainless Steel

Specifications Orifice Inner Diameter Id

0.0045 in

Specifications Orifice Outer Diameter Od

0.060 in

Specifications Orifice Style

Sharp Edge Ruby Straight-Hole

Specifications Product Style

Gland/Gasket

Specifications Product Type

Orifice Connectors Fittings

Specifications Series

RB82087

Specifications Suggested Pressures

0.060 O.D. - Low Pressure (Under 150 psi) | 0.118 O.D. - Medium Pressure (5000 psi or lower) | 0.087 O.D. - High Pressure (Above 5000 psi)

Specifications Vacuum Coupling Radiation Vcr Size

1/8
