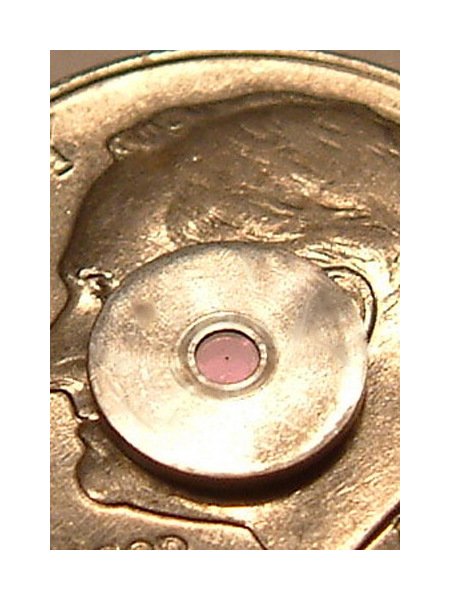

RB82087 Series Stainless Steel Gland/Gasket Connector Orifice

Name: RB82087 Series Stainless Steel Gland/Gasket Connector Orifice
Brand: Bird Precision
SKU: ORI-14c7bd
Price: 29.99 USD
Availability: OutOfStock

SKU:ORI-14c7bd

Precision-engineered stainless steel orifice connector for reliable face seal connections in stainless tube applications. Laser-drilled for accuracy and low flow.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The RB82087 Series Stainless Steel Gland/Gasket Connector Orifice is meticulously engineered for stainless tube applications, providing a secure face seal connection. These precision-crafted discs seamlessly form a reliable seal in VCR 1/8 sizes with an inner diameter of 0.0020in and an outer diameter of 0.260in. Laser-drilled and wire-lapped for optimum roundness and sharp edges, these orifices ensure low flow, accuracy, and repeatability for critical applications.

Product Specifications

Additional Information Additional Information

For 1/8 VCR, stainless tube applications the standard material is stainless.This Sharp Edge Ruby Orifice series is laser drilled and wire lapped to insure Roundness, surface finish and sharp edges.This orifice series is a good choice where the designer requires low flow, accuracy and repeatability. This orifice series has a complete micron series starting at 7.5 microns.

Specifications Diameter

0.260 in

Specifications Material

Stainless Steel

Specifications Orifice Inner Diameter Id

0.0020 in

Specifications Orifice Outer Diameter Od

0.060 in

Specifications Orifice Style

Sharp Edge Ruby Straight-Hole

Specifications Product Style

Gland/Gasket

Specifications Product Type

Orifice Connectors Fittings

Specifications Series

RB82087

Specifications Suggested Pressures

0.060 O.D. - Low Pressure (Under 150 psi) | 0.118 O.D. - Medium Pressure (5000 psi or lower) | 0.087 O.D. - High Pressure (Above 5000 psi)

Specifications Vacuum Coupling Radiation Vcr Size

1/8
