RB82087 Series Stainless Steel Gland/Gasket Connector Orifice

Name: RB82087 Series Stainless Steel Gland/Gasket Connector Orifice
Brand: Bird Precision
SKU: ORI-2097ed
Price: 49.99 USD
Availability: OutOfStock

SKU:ORI-2097ed

Precision-crafted RB82087 Series Stainless Steel Gland/Gasket Connector Orifice for reliable face seal connections in stainless tube applications.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

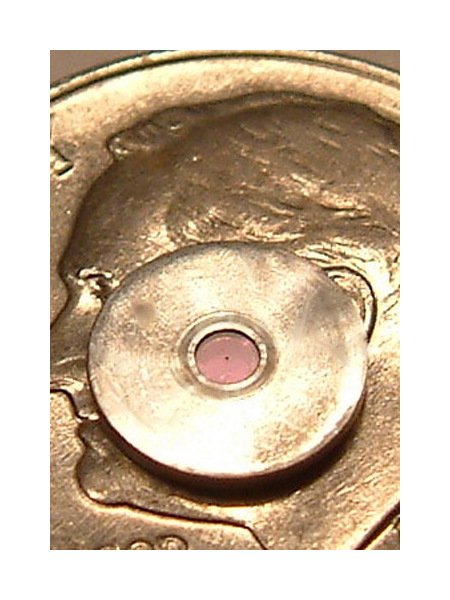

The RB82087 Series Stainless Steel Gland/Gasket Connector Orifice is designed to provide a secure face seal connection for stainless tube applications. These precision-crafted discs seamlessly form a reliable seal against both faces when assembled, ensuring leak-free performance. With an inner diameter of 0.0070 inches and a diameter of 0.260 inches, this orifice connector offers unparalleled accuracy and repeatability for low flow applications. Manufactured from high-grade stainless steel, this product undergoes laser drilling and wire lapping to guarantee roundness, surface finish, and sharp edges for optimal efficiency. Ideal for critical applications requiring precision, this orifice series meets stringent quality standards and is a testament to unmatched craftsmanship.

Product Specifications

Additional Information Additional Information

For 1/8 VCR, stainless tube applications the standard material is stainless.This Sharp Edge Ruby Orifice series is laser drilled and wire lapped to insure Roundness, surface finish and sharp edges.This orifice series is a good choice where the designer requires low flow, accuracy and repeatability. This orifice series has a complete micron series starting at 7.5 microns.

Specifications Diameter

0.260 in

Specifications Material

Stainless Steel

Specifications Orifice Inner Diameter Id

0.0070 in

Specifications Orifice Outer Diameter Od

0.060 in

Specifications Orifice Style

Sharp Edge Ruby Straight-Hole

Specifications Product Style

Gland/Gasket

Specifications Product Type

Orifice Connectors Fittings

Specifications Series

RB82087

Specifications Suggested Pressures

0.060 O.D. - Low Pressure (Under 150 psi) | 0.118 O.D. - Medium Pressure (5000 psi or lower) | 0.087 O.D. - High Pressure (Above 5000 psi)

Specifications Vacuum Coupling Radiation Vcr Size

1/8
