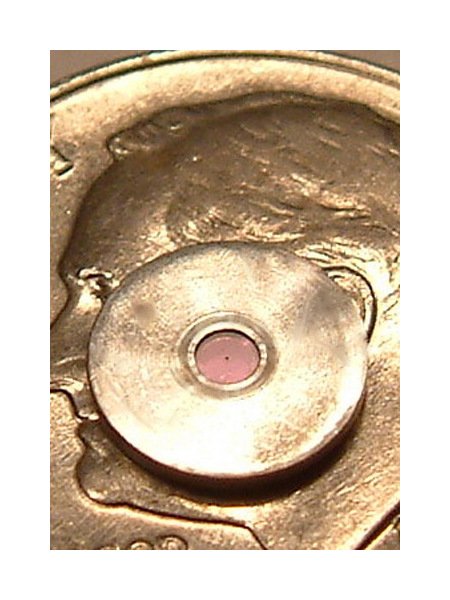

RB82087 Series Stainless Steel Gland/Gasket Connector Orifice

Name: RB82087 Series Stainless Steel Gland/Gasket Connector Orifice
Brand: Bird Precision
SKU: ORI-137549
Price: 29.99 USD
Availability: OutOfStock

SKU:ORI-137549

Precision-crafted RB82087 Series Stainless Steel Orifice Connector for secure face seal in stainless tube applications. Laser-drilled sharp edge ruby design for accuracy and repeatability.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The RB82087 Series Stainless Steel Gland/Gasket Connector Orifice ensures a secure face seal connection for stainless tube applications. These precision-crafted discs self-seal when assembled, creating a reliable seal against both surfaces. With an inner diameter of 0.0215 inches and a 0.260-inch diameter, this orifice connector guarantees low flow, accuracy, and repeatability. Laser drilled and wire lapped, the sharp edge ruby straight-hole design guarantees roundness, surface finish, and sharp edges, making it an ideal choice for applications requiring precision and efficiency.

Product Specifications

Additional Information Additional Information

For 1/8 VCR, stainless tube applications the standard material is stainless.This Sharp Edge Ruby Orifice series is laser drilled and wire lapped to insure Roundness, surface finish and sharp edges.This orifice series is a good choice where the designer requires low flow, accuracy and repeatability. This orifice series has a complete micron series starting at 7.5 microns.

Specifications Diameter

0.260 in

Specifications Material

Stainless Steel

Specifications Orifice Inner Diameter Id

0.0215 in

Specifications Orifice Outer Diameter Od

0.060 in

Specifications Orifice Style

Sharp Edge Ruby Straight-Hole

Specifications Product Style

Gland/Gasket

Specifications Product Type

Orifice Connectors Fittings

Specifications Series

RB82087

Specifications Suggested Pressures

0.060 O.D. - Low Pressure (Under 150 psi) | 0.118 O.D. - Medium Pressure (5000 psi or lower) | 0.087 O.D. - High Pressure (Above 5000 psi)

Specifications Vacuum Coupling Radiation Vcr Size

1/8
