RB82306 Series Stainless Steel Sharp Edge Ruby Orifice Connector
RB82306 Series Stainless Steel Sharp Edge Ruby Orifice Connector
SKU:ORI-50c057
Precision-crafted stainless steel sharp edge ruby orifice connector for secure face seal connections in stainless tube applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
RB82306 Series Stainless Steel Sharp Edge Ruby Orifice Connector
$49.99
Quantity: 1
Claim Your Seller Account
RB82306 Series Stainless Steel Sharp Edge Ruby Orifice Connector
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

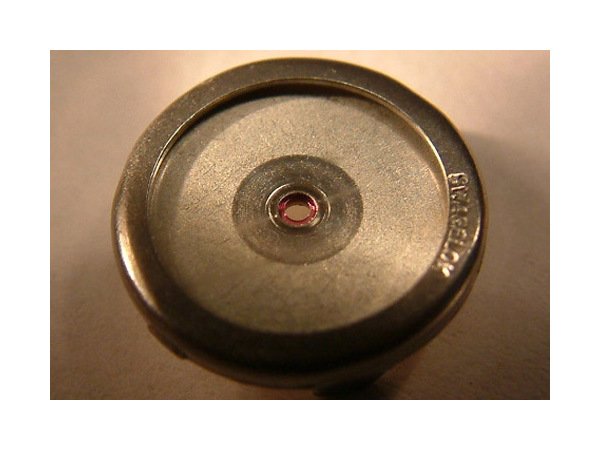

The RB82306 Series Stainless Steel Sharp Edge Ruby Orifice Connector ensures a secure face seal connection for stainless tube applications. These precision-crafted orifices, with an inner diameter of 0.024 inches and a diameter of 0.475 inches, seamlessly form reliable seals in low, medium, and high-pressure settings. The laser-drilled sharp edge ruby orifice design guarantees roundness, surface finish, and sharp edges, ideal for applications requiring low flow, accuracy, and repeatability. Additionally, the silver plate coating resists galling, enhancing durability and performance.
Product Specifications
Additional Information Additional Information
For 1/4" stainless tube applications the standard material is nickel. This gasket comes with a silver plate which helps resist galling. This gasket comes with our sharp edge ruby series in sizes from 0.0004" thru 0.035". Please refer to the drop down screen below for available sizes and orifice part numbers. It may be possible to customize this part for your unique application needs.The material can be nickel/silver plate, stainless and stainless/silver plateThis Sharp Edge Ruby Orifice series is laser drilled and wire lapped to insure Roundness, surface finish and sharp edges.This orifice series is a good choice where the designer requires low flow, accuracy and repeatability. This orifice series has a complete micron series starting at 7.5 microns.
Specifications Diameter
0.475 in
Specifications Material
Stainless Steel
Specifications Orifice Inner Diameter Id
0.0240 in
Specifications Orifice Outer Diameter Od
0.060 in
Specifications Orifice Style
Sharp Edge Ruby Straight-Hole
Specifications Product Style
Gland/Gasket
Specifications Product Type
Orifice Connectors Fittings
Specifications Series
RB82306
Specifications Suggested Pressures
0.060 O.D. - Low Pressure (Under 150 psi) | 0.118 O.D. - Medium Pressure (5000 psi or lower) | 0.087 O.D. - High Pressure (Above 5000 psi)
Specifications Tube Size
1/4 in
