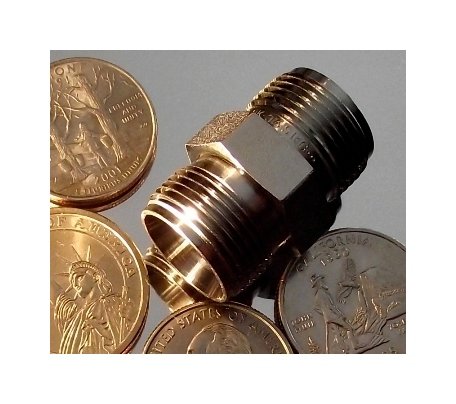

RB82392 Series Stainless Steel Union with Ruby Orifice - 0.033" I.D., 0.118" O.D.

Name: RB82392 Series Stainless Steel Union with Ruby Orifice - 0.033" I.D., 0.118" O.D.
Brand: Bird Precision
SKU: ORI-24c6a3
Price: 49.99 USD
Availability: OutOfStock

SKU:ORI-24c6a3

Precision-engineered RB82392 Series Stainless Steel Union with Ruby Orifice for high-pressure applications

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The RB82392 Series Stainless Steel Orifice Union features a sharp edge Ruby orifice laser drilled and wire lapped for precision and durability. This union is designed for 1/2" tubing and offers orifice sizes ranging from 0.010" to 0.081" for varying pressure requirements. With suggested pressures suitable for low, medium, and high-pressure applications, this union ensures reliable performance under challenging conditions.

Product Specifications

Additional Information Additional Information

This Sharp Edge Ruby Orifice series is also laser drilled and wire lapped to insure sharp edges, roundness and repeatability.This orifice series is a good choice for higher pressure and higher flow applications. The orifice is more robust and the orifice range extends up to 0.081"

Specifications Diameter

1/2 in

Specifications Material

Stainless Steel

Specifications Orifice Inner Diameter Id

0.0330 in

Specifications Orifice Outer Diameter Od

0.1180 in

Specifications Orifice Style

Sharp Edge Ruby Straight-Hole

Specifications Product Style

Union

Specifications Product Type

Orifice Connectors Fittings

Specifications Series

RB82392

Specifications Suggested Pressures

0.060 O.D. - Low Pressure (Under 150 psi) | 0.118 O.D. - Medium Pressure (5000 psi or lower) | 0.087 O.D. - High Pressure (Above 5000 psi)

Specifications Tube Diameter

1/2 in
