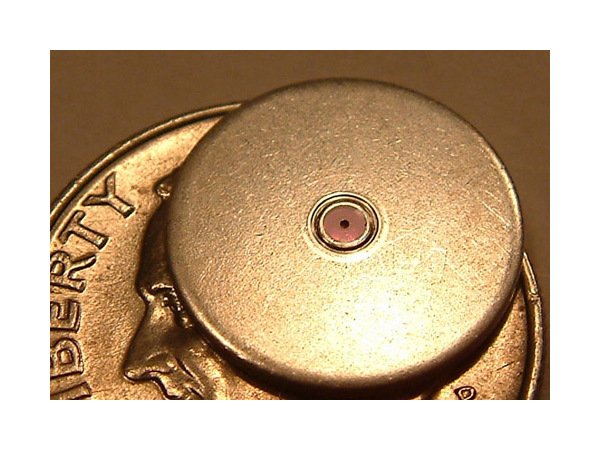

RB82502 Series Stainless Steel Gland/Gasket Orifice Connector
RB82502 Series Stainless Steel Gland/Gasket Orifice Connector
SKU:ORI-946ec9
Precision-engineered stainless steel orifice connector with Sharp Edge Ruby design for high precision and reliability in stainless tube applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
RB82502 Series Stainless Steel Gland/Gasket Orifice Connector
$49.99
Quantity: 1
Claim Your Seller Account
RB82502 Series Stainless Steel Gland/Gasket Orifice Connector
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The RB82502 Series Stainless Steel Gland/Gasket Orifice Connector is a precision-engineered solution for stainless tube applications, ensuring a clean face seal connection. With a 0.0090" Inner Diameter and 0.475" Diameter, this connector forms reliable seals against both faces of the disc, providing optimal performance under varying pressures. The Sharp Edge Ruby Straight-Hole design, laser-drilled for accuracy, offers low flow, repeatability, and micron precision. Customizable to suit unique application needs, it features a nickel-plated silver gasket to resist galling, making it an ideal choice for applications requiring high performance and precision.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
This gasket comes with a silver plate which helps resist galling. This gasket comes with our sharp edge ruby series in sizes from 0.0004" thru 0.035". This item can be customized for your unique application needs.This Sharp Edge Ruby Orifice series is laser drilled and wire lapped to insure Roundness, surface finish and sharp edges.This orifice series is a good choice where the designer requires low flow, accuracy and repeatability. This orifice series has a complete micron series starting at 7.5 microns.
Specifications Diameter
0.475 in
Specifications Material
Stainless Steel
Specifications Orifice Inner Diameter Id
0.0090 in
Specifications Orifice Outer Diameter Od
0.060 in
Specifications Orifice Style
Sharp Edge Ruby Straight-Hole
Specifications Product Style
Gland/Gasket
Specifications Product Type
Orifice Connectors Fittings
Specifications Series
RB82502
Specifications Suggested Pressures
0.060 O.D. - Low Pressure (Under 150 psi) | 0.118 O.D. - Medium Pressure (5000 psi or lower) | 0.087 O.D. - High Pressure (Above 5000 psi)
Specifications Vacuum Coupling Radiation Vcr Size
1/4
