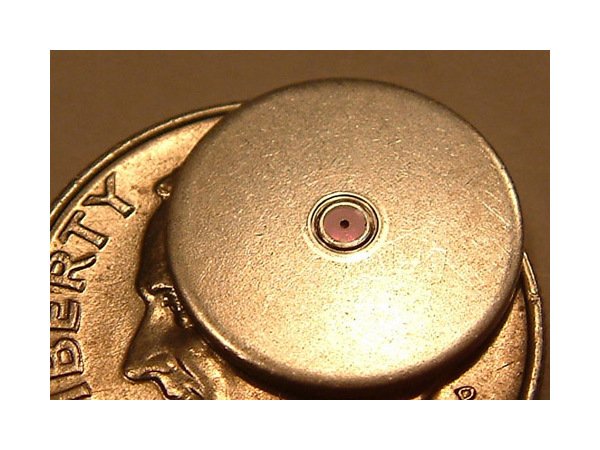

RB82502 Series Stainless Steel Gland Orifice Connector, 0.0220" I.D., 0.475" Diameter
RB82502 Series Stainless Steel Gland Orifice Connector, 0.0220" I.D., 0.475" Diameter
SKU:ORI-4dccb3
RB82502 Stainless Steel Gland Orifice Connector for precise face seal connections in stainless tube applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
RB82502 Series Stainless Steel Gland Orifice Connector, 0.0220" I.D., 0.475" Diameter
$24.99
Quantity: 1
Claim Your Seller Account
RB82502 Series Stainless Steel Gland Orifice Connector, 0.0220" I.D., 0.475" Diameter
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The RB82502 Series Stainless Steel Gland Orifice Connector offers a reliable face seal connection for stainless tube applications. These precision-engineered orifices ensure a secure seal by forming tight connections when assembled. With a nickel standard material and a VCR Size of 1/4, these orifices feature a sharp-edge ruby straight-hole design for low flow, accuracy, and repeatability. Customizable for unique application needs, this series is laser drilled and wire lapped to guarantee roundness, surface finish, and sharp edges. Ideal for applications requiring high pressures, this orifice series meets stringent quality and performance standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
This gasket comes with a silver plate which helps resist galling. This gasket comes with our sharp edge ruby series in sizes from 0.0004" thru 0.035". This item can be customized for your unique application needs.This Sharp Edge Ruby Orifice series is laser drilled and wire lapped to insure Roundness, surface finish and sharp edges.This orifice series is a good choice where the designer requires low flow, accuracy and repeatability. This orifice series has a complete micron series starting at 7.5 microns.
Specifications Diameter
0.475 in
Specifications Material
Stainless Steel
Specifications Orifice Inner Diameter Id
0.0220 in
Specifications Orifice Outer Diameter Od
0.060 in
Specifications Orifice Style
Sharp Edge Ruby Straight-Hole
Specifications Product Style
Gland/Gasket
Specifications Product Type
Orifice Connectors Fittings
Specifications Series
RB82502
Specifications Suggested Pressures
0.060 O.D. - Low Pressure (Under 150 psi) | 0.118 O.D. - Medium Pressure (5000 psi or lower) | 0.087 O.D. - High Pressure (Above 5000 psi)
Specifications Vacuum Coupling Radiation Vcr Size
1/4
