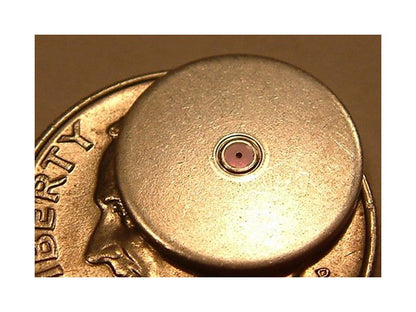

RB82502 Series Stainless Steel Orifice Connector - 0.0080" I.D., 0.475" Dia. - VCR Size 1/4
RB82502 Series Stainless Steel Orifice Connector - 0.0080" I.D., 0.475" Dia. - VCR Size 1/4
SKU:ORI-638e30
Precision stainless steel orifice connector with sharp-edge ruby design for reliable seals in varying pressures. Customizable and durable.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
RB82502 Series Stainless Steel Orifice Connector - 0.0080" I.D., 0.475" Dia. - VCR Size 1/4
$49.99
Quantity: 1
Claim Your Seller Account
RB82502 Series Stainless Steel Orifice Connector - 0.0080" I.D., 0.475" Dia. - VCR Size 1/4
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The RB82502 Series Stainless Steel Gland/Gasket Connector Orifices offer precise face seal connections for stainless tube applications. Featuring a sharp-edge ruby straight-hole design, these orifices ensure a reliable seal under various pressure conditions, from low to high. Customizable for unique application needs, laser-drilled, wire lapped, and silver-plated for enhanced durability and galling resistance. Ideal for applications requiring low flow, accuracy, and repeatability, with micron series options available for utmost precision.
Product Specifications
Additional Information Additional Information
This gasket comes with a silver plate which helps resist galling. This gasket comes with our sharp edge ruby series in sizes from 0.0004" thru 0.035". This item can be customized for your unique application needs.This Sharp Edge Ruby Orifice series is laser drilled and wire lapped to insure Roundness, surface finish and sharp edges.This orifice series is a good choice where the designer requires low flow, accuracy and repeatability. This orifice series has a complete micron series starting at 7.5 microns.
Specifications Diameter
0.475 in
Specifications Material
Stainless Steel
Specifications Orifice Inner Diameter Id
0.0080 in
Specifications Orifice Outer Diameter Od
0.060 in
Specifications Orifice Style
Sharp Edge Ruby Straight-Hole
Specifications Product Style
Gland/Gasket
Specifications Product Type
Orifice Connectors Fittings
Specifications Series
RB82502
Specifications Suggested Pressures
0.060 O.D. - Low Pressure (Under 150 psi) | 0.118 O.D. - Medium Pressure (5000 psi or lower) | 0.087 O.D. - High Pressure (Above 5000 psi)
Specifications Vacuum Coupling Radiation Vcr Size
1/4
