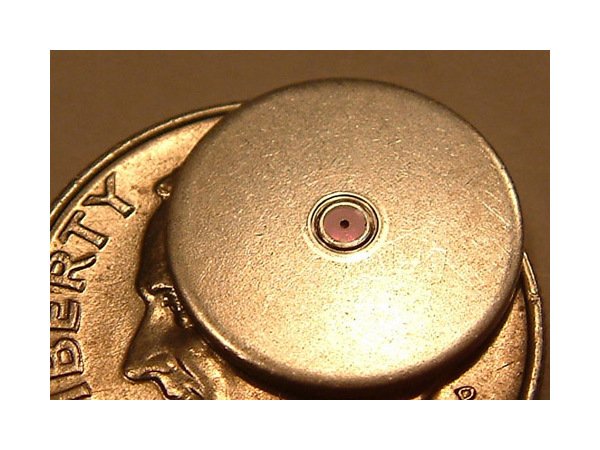

RB82502 Series Stainless Steel Orifice Connector - 0.0180" I.D., 0.475" Diameter
RB82502 Series Stainless Steel Orifice Connector - 0.0180" I.D., 0.475" Diameter
SKU:ORI-19f42b
RB82502 Series Stainless Steel Orifice Connector for precise and reliable stainless tube connections.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
RB82502 Series Stainless Steel Orifice Connector - 0.0180" I.D., 0.475" Diameter
$34.99
Quantity: 1
Claim Your Seller Account
RB82502 Series Stainless Steel Orifice Connector - 0.0180" I.D., 0.475" Diameter
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The RB82502 Series Stainless Steel Orifice Connector offers a reliable face seal connection for stainless tube applications. With a precision-crafted sharp edge ruby straight-hole orifice, this connector ensures low flow, accuracy, and repeatability. Laser-drilled and wire-lapped for roundness and sharpness, it guarantees a secure seal under varying pressures. Customizable for unique applications, this orifice connector is ideal for low, medium, and high-pressure environments. The silver-plated gasket resists galling, making it a durable and efficient choice.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
This gasket comes with a silver plate which helps resist galling. This gasket comes with our sharp edge ruby series in sizes from 0.0004" thru 0.035". This item can be customized for your unique application needs.This Sharp Edge Ruby Orifice series is laser drilled and wire lapped to insure Roundness, surface finish and sharp edges.This orifice series is a good choice where the designer requires low flow, accuracy and repeatability. This orifice series has a complete micron series starting at 7.5 microns.
Specifications Diameter
0.475 in
Specifications Material
Stainless Steel
Specifications Orifice Inner Diameter Id
0.0180 in
Specifications Orifice Outer Diameter Od
0.060 in
Specifications Orifice Style
Sharp Edge Ruby Straight-Hole
Specifications Product Style
Gland/Gasket
Specifications Product Type
Orifice Connectors Fittings
Specifications Series
RB82502
Specifications Suggested Pressures
0.060 O.D. - Low Pressure (Under 150 psi) | 0.118 O.D. - Medium Pressure (5000 psi or lower) | 0.087 O.D. - High Pressure (Above 5000 psi)
Specifications Vacuum Coupling Radiation Vcr Size
1/4
