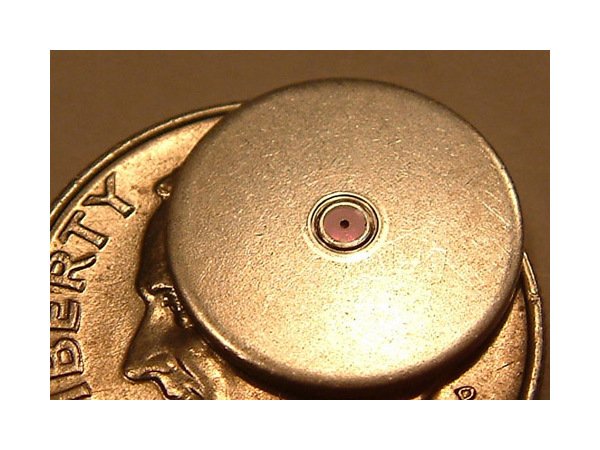

RB82502 Series Stainless Steel Sharp Edge Ruby Orifice Connector
RB82502 Series Stainless Steel Sharp Edge Ruby Orifice Connector
SKU:ORI-f91b18
Precision RB82502 Series Stainless Steel Orifice Connector for stainless tube applications, providing reliable seals and low flow accuracy.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
RB82502 Series Stainless Steel Sharp Edge Ruby Orifice Connector
$29.99
Quantity: 1
Claim Your Seller Account
RB82502 Series Stainless Steel Sharp Edge Ruby Orifice Connector
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The RB82502 Series Stainless Steel Sharp Edge Ruby Orifice Connector is designed to provide a secure and precise face seal connection for stainless tube applications. With a 0.0004" Inner Diameter (I.D.) and a 0.475" Diameter, this orifice connector ensures a reliable seal against both faces of the disc when assembled. Crafted with nickel standard material and featuring a Sharp Edge Ruby Straight-Hole design, this connector offers exceptional accuracy, repeatability, and low flow capabilities. The laser-drilled and wire-lapped construction guarantees roundness, surface finish, and sharp edges, making it an ideal choice for applications requiring high performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
This gasket comes with a silver plate which helps resist galling. This gasket comes with our sharp edge ruby series in sizes from 0.0004" thru 0.035". This item can be customized for your unique application needs.This Sharp Edge Ruby Orifice series is laser drilled and wire lapped to insure Roundness, surface finish and sharp edges.This orifice series is a good choice where the designer requires low flow, accuracy and repeatability. This orifice series has a complete micron series starting at 7.5 microns.
Specifications Diameter
0.475 in
Specifications Material
Stainless Steel
Specifications Orifice Inner Diameter Id
0.0004 in
Specifications Orifice Outer Diameter Od
0.060 in
Specifications Orifice Style
Sharp Edge Ruby Straight-Hole
Specifications Product Style
Gland/Gasket
Specifications Product Type
Orifice Connectors Fittings
Specifications Series
RB82502
Specifications Suggested Pressures
0.060 O.D. - Low Pressure (Under 150 psi) | 0.118 O.D. - Medium Pressure (5000 psi or lower) | 0.087 O.D. - High Pressure (Above 5000 psi)
Specifications Vacuum Coupling Radiation Vcr Size
1/4
