RB82502 Stainless Steel Gland/Gasket Connector Orifice

Name: RB82502 Stainless Steel Gland/Gasket Connector Orifice
Brand: Bird Precision
SKU: ORI-884e1e
Price: 34.99 USD
Availability: OutOfStock

SKU:ORI-884e1e

Precision-engineered RB82502 Stainless Steel Gland/Gasket Connector Orifice for reliable face seal connections in stainless tube applications.

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

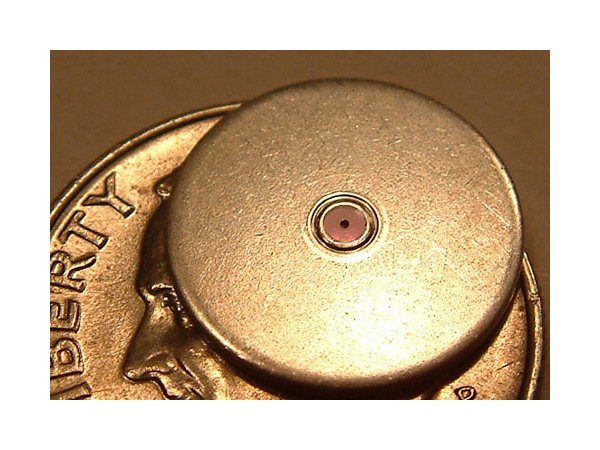

The RB82502 Series Stainless Steel Gland/Gasket Connector Orifice ensures a secure face seal connection for stainless tube applications. Featuring a precise 0.0129" Inner Diameter (I.D.) and a durable 0.475" Diameter construction, this orifice forms a reliable seal on both faces when assembled. With a sharp edge ruby straight-hole design, this orifice offers low flow, accuracy, and repeatability ideal for various industrial applications. Customizable to meet unique needs, it is laser-drilled and wire-lapped for superior roundness and surface finish, making it an excellent choice for applications requiring precision and reliability.

Product Specifications

Additional Information Additional Information

This gasket comes with a silver plate which helps resist galling. This gasket comes with our sharp edge ruby series in sizes from 0.0004" thru 0.035". This item can be customized for your unique application needs.This Sharp Edge Ruby Orifice series is laser drilled and wire lapped to insure Roundness, surface finish and sharp edges.This orifice series is a good choice where the designer requires low flow, accuracy and repeatability. This orifice series has a complete micron series starting at 7.5 microns.

Specifications Diameter

0.475 in

Specifications Material

Stainless Steel

Specifications Orifice Inner Diameter Id

0.0129 in

Specifications Orifice Outer Diameter Od

0.060 in

Specifications Orifice Style

Sharp Edge Ruby Straight-Hole

Specifications Product Style

Gland/Gasket

Specifications Product Type

Orifice Connectors Fittings

Specifications Series

RB82502

Specifications Suggested Pressures

0.060 O.D. - Low Pressure (Under 150 psi) | 0.118 O.D. - Medium Pressure (5000 psi or lower) | 0.087 O.D. - High Pressure (Above 5000 psi)

Specifications Vacuum Coupling Radiation Vcr Size

1/4
