RDM-EB16 Series 25cm³ Vitreous Carbon E-Beam Liner with 4 Pockets
RDM-EB16 Series 25cm³ Vitreous Carbon E-Beam Liner with 4 Pockets
SKU:RDM-add1f6
Explore the RDM-EB16 Series 25cm³ Vitreous Carbon E-Beam Liner with 4 Pockets for precise e-beam evaporation applications. Ideal for high-volume operations.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
RDM-EB16 Series 25cm³ Vitreous Carbon E-Beam Liner with 4 Pockets
$59.99
Quantity: 1
Claim Your Seller Account
RDM-EB16 Series 25cm³ Vitreous Carbon E-Beam Liner with 4 Pockets
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

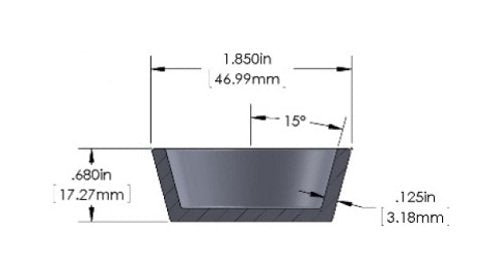

The RDM-EB16 Series 25cm³ Vitreous Carbon E-Beam Liner with 4 Pockets is designed for precision e-beam evaporation applications. Crafted by R. D. Mathis Company, this crucible container liner boasts a 15º angle, sturdy 0.125" wall thickness, and a spacious 25cm³ capacity. Its compact dimensions of 0.680" in height and 1.850" in width ensure seamless integration into your system. Suitable for both standard and custom setups, this liner guarantees reliable performance and excellent material containment, making it a preferred choice for high-volume operations.
Product Specifications
Specifications Angle
15 º
Specifications Container Liner Type
Crucible
Specifications Height
0.680 in | 17.27 mm
Specifications Material
Vitreous Carbon
Specifications Number Of Pockets
4
Specifications Size
25 cm³
Specifications Wall Thickness
0.125 in | 3.18 mm
Specifications Width
1.850 in | 46.99 mm
