RDM-EB22 Series Graphite E-Beam Liner - 4cm³ Size
RDM-EB22 Series Graphite E-Beam Liner - 4cm³ Size
SKU:RDM-33fd21
Precision-engineered 4cm³ Graphite E-Beam Liner for reliable electron beam applications. Customizable & high-quality for industrial use.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
RDM-EB22 Series Graphite E-Beam Liner - 4cm³ Size
$59.99
Quantity: 1
Claim Your Seller Account
RDM-EB22 Series Graphite E-Beam Liner - 4cm³ Size
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

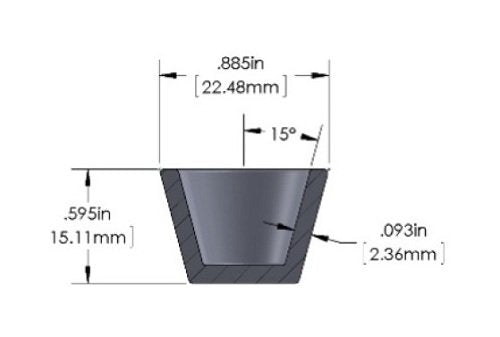

The RDM-EB22 Series Graphite E-Beam Liner in 4 cubic centimeter size is a precision-engineered Crucible Container Liner designed by R. D. Mathis Company. Crafted from high-quality graphite, it features dimensions of 0.595 inches height, 0.885 inches width, and wall thickness of 0.093 inches. With a 15-degree angle design for optimal performance and compatibility, this liner ensures reliable containment and precise electron beam applications. Ideal for industrial and research settings, this customizable liner guarantees superior quality and is readily available for bulk orders with volume discounts.
Product Specifications
Specifications Angle
15 º
Specifications Container Liner Type
Crucible
Specifications Height
0.595 in | 15.11 mm
Specifications Material
Graphite
Specifications Size
4 cm³
Specifications Wall Thickness
0.093 in | 2.36 mm
Specifications Width
0.885 in | 22.48 mm
