RDM-EB22 Tungsten E-Beam Liner 4cm³ Size
RDM-EB22 Tungsten E-Beam Liner 4cm³ Size
SKU:RDM-3fa006
Precision-engineered Tungsten E-Beam Liner for critical applications in 4cm³ size. Custom sizes available.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
RDM-EB22 Tungsten E-Beam Liner 4cm³ Size
$39.99
Quantity: 1
Claim Your Seller Account
RDM-EB22 Tungsten E-Beam Liner 4cm³ Size
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

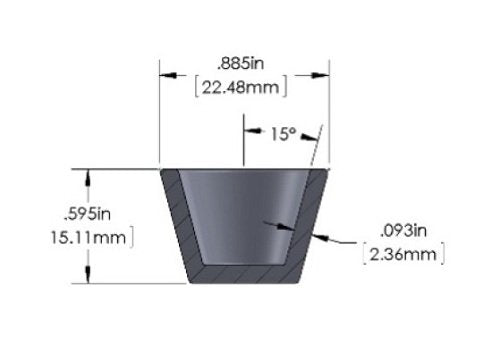

The RDM-EB22 Tungsten E-Beam Liner in 4cm³ size is a precision-engineered container liner designed for crucial E-beam applications. Crafted from high-quality tungsten, it boasts a height of 15.11mm, width of 22.48mm, wall thickness of 2.36mm, and an angle of 15º for optimal performance. Ideal for demanding environments, it ensures efficient material containment and delivery, offering superior durability and reliability. Custom sizes available upon request.
Product Specifications
Specifications Angle
15 º
Specifications Container Liner Type
Crucible
Specifications Height
0.595 in | 15.11 mm
Specifications Material
Tungsten
Specifications Size
4 cm³
Specifications Wall Thickness
0.093 in | 2.36 mm
Specifications Width
0.885 in | 22.48 mm
