RDM-EB23 7 cm³ Vitreous Carbon E-Beam Liner
RDM-EB23 7 cm³ Vitreous Carbon E-Beam Liner
SKU:RDM-71ad5f
High-performance 7 cm³ Vitreous Carbon E-Beam Liner for precise electron beam evaporation processes.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
RDM-EB23 7 cm³ Vitreous Carbon E-Beam Liner
$59.99
Quantity: 1
Claim Your Seller Account
RDM-EB23 7 cm³ Vitreous Carbon E-Beam Liner
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

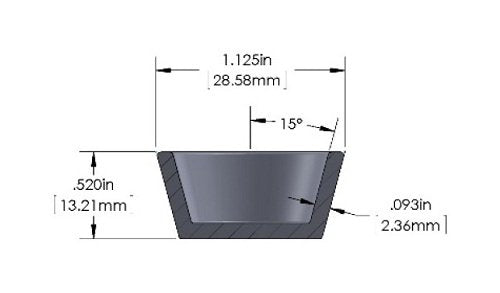

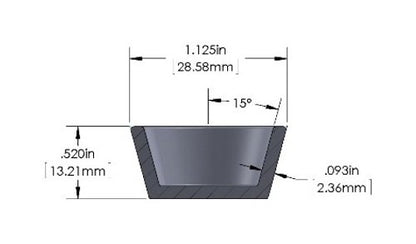

The RDM-EB23 Series 7 cm³ Vitreous Carbon E-Beam Liner by R.D. Mathis Company is engineered for high-performance electron beam evaporation processes. With precise dimensions of 0.520in height, 1.125in width, and a 15° angle, this crucible-type container liner ensures uniform evaporation. Crafted from vitreous carbon with a wall thickness of 0.093in, it offers exceptional durability and thermal stability. Suitable for various material deposition applications, its custom sizing options cater to diverse system requirements. Volume discounts are available, making it a cost-effective choice for research institutions and industrial facilities.
Product Specifications
Specifications Angle
15 º
Specifications Container Liner Type
Crucible
Specifications Height
0.520 in | 13.21 mm
Specifications Material
Vitreous Carbon
Specifications Size
7 cm³
Specifications Wall Thickness
0.093 in | 2.36 mm
Specifications Width
1.125 in | 28.58 mm
