RDM-EB23 7cm³ Aluminum Oxide E-Beam Liner
RDM-EB23 7cm³ Aluminum Oxide E-Beam Liner
SKU:RDM-bd59df
High-quality 7cm³ Aluminum Oxide E-Beam Liner for precise evaporation processes. Durable, customizable, and cost-effective for institutions.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
RDM-EB23 7cm³ Aluminum Oxide E-Beam Liner
$39.99
Quantity: 1
Claim Your Seller Account
RDM-EB23 7cm³ Aluminum Oxide E-Beam Liner
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The RDM-EB23 Series 7 Cubic Centimeter Aluminum Oxide E-Beam Liner by R.D. Mathis Company is a high-quality crucible type liner designed for precise electron beam evaporation processes. With a wall thickness of 0.093 inches, this liner offers exceptional durability and thermal stability. Its 15-degree angle and customizability make it ideal for various system integrations. Volume discounts are available, ensuring cost-effectiveness for institutions and labs.

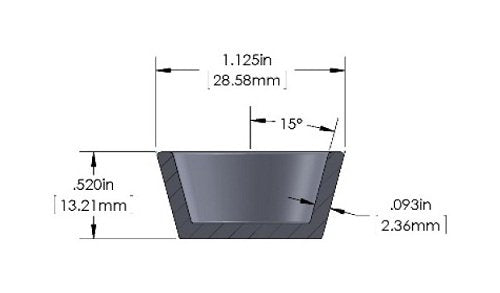

Product Specifications
Specifications Angle
15 º
Specifications Container Liner Type
Crucible
Specifications Height
0.520 in | 13.21 mm
Specifications Material
Aluminum Oxide
Specifications Size
7 cm³
Specifications Wall Thickness
0.093 in | 2.36 mm
Specifications Width
1.125 in | 28.58 mm
