RDM-EB23 Series 7cm³ Boron Nitride E-Beam Liner
RDM-EB23 Series 7cm³ Boron Nitride E-Beam Liner
SKU:RDM-bdf419
High-quality 7cm³ Boron Nitride E-Beam Liner for precise angle deposition. Custom sizes available. Bulk discounts offered.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
RDM-EB23 Series 7cm³ Boron Nitride E-Beam Liner
$59.99
Quantity: 1
Claim Your Seller Account
RDM-EB23 Series 7cm³ Boron Nitride E-Beam Liner
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

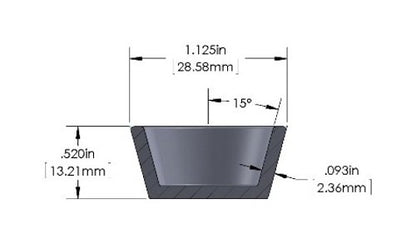

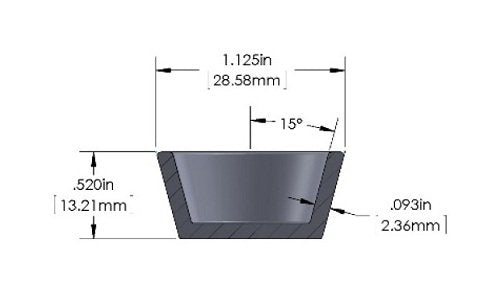

The RDM-EB23 Series 7cm³ Boron Nitride E-Beam Liner by R.D. Mathis Company is a high-quality crucible container liner designed for precise angle deposition processes. With dimensions of 0.520 in height, 1.125 in width, and a 15º angle, it offers exceptional wall thickness of 0.093 in for uniform coating applications. Made of Boron Nitride, this liner ensures optimal performance and longevity, meeting rigorous industry standards. Ideal for integration into various systems, custom sizes are available upon request. Bulk discounts offered, making it a cost-effective choice for volume purchases.
Product Specifications
Specifications Angle
15 º
Specifications Container Liner Type
Crucible
Specifications Height
0.520 in | 13.21 mm
Specifications Material
Boron Nitride
Specifications Size
7 cm³
Specifications Wall Thickness
0.093 in | 2.36 mm
Specifications Width
1.125 in | 28.58 mm
