RDM-EB23 Tungsten E-Beam Liner 7 cm³
RDM-EB23 Tungsten E-Beam Liner 7 cm³
SKU:RDM-d33369
Premium Tungsten E-Beam Liner for precise electron beam containment in 7cm³ size.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
RDM-EB23 Tungsten E-Beam Liner 7 cm³
$59.99
Quantity: 1
Claim Your Seller Account
RDM-EB23 Tungsten E-Beam Liner 7 cm³
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The RDM-EB23 Tungsten E-Beam Liner in 7 cubic centimeter size is precision-engineered for reliable performance and compatibility with a wide range of systems. Crafted from high-quality tungsten, it offers exceptional durability and heat resistance. With precise dimensions and a 15-degree angle, this liner ensures optimal electron beam containment. Ideal for industrial and research applications, custom sizes are available to meet specific requirements. Bulk discounts make it cost-effective for high-volume procurement.

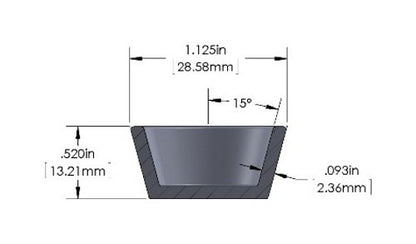

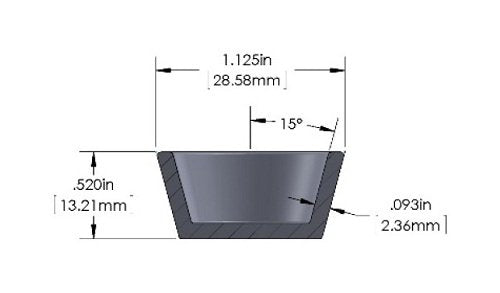

Product Specifications
Specifications Angle
15 º
Specifications Container Liner Type
Crucible
Specifications Height
0.520 in | 13.21 mm
Specifications Material
Tungsten
Specifications Size
7 cm³
Specifications Wall Thickness
0.093 in | 2.36 mm
Specifications Width
1.125 in | 28.58 mm
