RDM-EB25 Vitreous Carbon E-Beam Liner with 6 Pockets - 25 cm³
RDM-EB25 Vitreous Carbon E-Beam Liner with 6 Pockets - 25 cm³
SKU:RDM-a37b6a
Enhance your E-Beam system with the durable RDM-EB25 Vitreous Carbon Liner. Ideal for precise material deposition.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
RDM-EB25 Vitreous Carbon E-Beam Liner with 6 Pockets - 25 cm³
$129.99
Quantity: 1
Claim Your Seller Account
RDM-EB25 Vitreous Carbon E-Beam Liner with 6 Pockets - 25 cm³
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Meet your E-Beam deposition needs with precision using the RDM-EB25 Vitreous Carbon E-Beam Liner. This crucible-type liner, featuring a size of 25 cm³ with 6 pockets, ensures optimal material containment and uniform coating. The vitreous carbon construction offers exceptional durability and resistance to high temperatures, making it ideal for demanding applications. Custom sizes available upon request. Benefit from volume discounts for bulk orders.

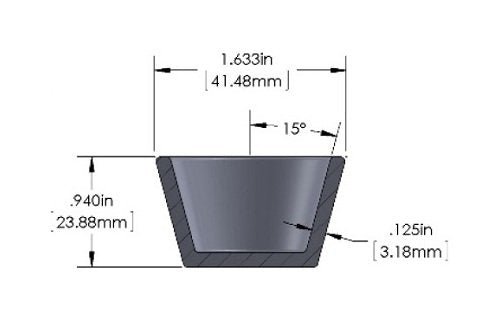

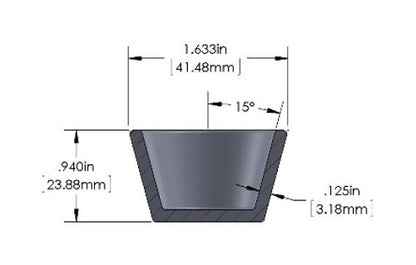

Product Specifications
Specifications Angle
15 º
Specifications Container Liner Type
Crucible
Specifications Height
0.940 in | 23.88 mm
Specifications Material
Vitreous Carbon
Specifications Number Of Pockets
6
Specifications Size
25 cm³
Specifications Wall Thickness
0.125 in | 3.18 mm
Specifications Width
1.633 in | 41.48 mm
