RDM-EB26 Boron Nitride E-Beam Liner 30 cm³ with Web
RDM-EB26 Boron Nitride E-Beam Liner 30 cm³ with Web
SKU:RDM-fb4dab
Optimize your electron beam evaporation with the RDM-EB26 Boron Nitride Liner - 30 cm³ capacity, angled crucible design, superior thermal conductivity.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
RDM-EB26 Boron Nitride E-Beam Liner 30 cm³ with Web
$129.99
Quantity: 1
Claim Your Seller Account
RDM-EB26 Boron Nitride E-Beam Liner 30 cm³ with Web
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The RDM-EB26 Boron Nitride E-Beam Liner is designed for precision electron beam evaporation processes. This 30 cm³ liner features a 15° angled crucible design, ensuring optimal material flow and consistent film deposition. The boron nitride construction offers high thermal conductivity and excellent resistance to chemical corrosion, ideal for demanding vacuum deposition applications. Custom sizes are available to meet specific system requirements. Benefit from volume discounts and seamless integration into your deposition system.

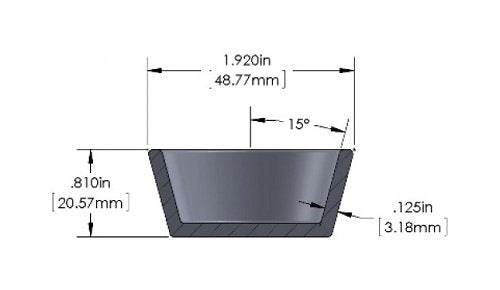

Product Specifications
Specifications Angle
15 º
Specifications Container Liner Type
Crucible
Specifications Height
0.810 in | 20.57 mm
Specifications Material
Boron Nitride
Specifications Size
30 cm³
Specifications Wall Thickness
0.125 in | 3.18 mm
Specifications Width
1.920 in | 48.77 mm
