RDM-EB4 7 cm³ Vitreous Carbon E-Beam Liner

Name: RDM-EB4 7 cm³ Vitreous Carbon E-Beam Liner
Brand: R.D. Mathis Company
SKU: RDM-f45987
Price: 49.99 USD
Availability: OutOfStock

SKU:RDM-f45987

Enhance your thin film deposition processes with our high-quality RDM-EB4 7 cm³ Vitreous Carbon E-Beam Liner. Custom sizes and volume discounts available.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The RDM-EB4 Series 7 Cubic Centimeter (cm³) Size Vitreous Carbon E-Beam Liner from R.D. Mathis Company is a precision-crafted crucible container liner designed for efficient electron beam evaporation processes. With a 15º angled wall, this liner boasts a wall thickness of 0.093 inches, ensuring durability and optimal performance. The vitreous carbon material guarantees high temperature resistance and chemical inertness, making it ideal for a wide range of thin film deposition applications. Custom sizes are available to meet specific system requirements. Bulk discounts make it cost-effective for volume purchases.

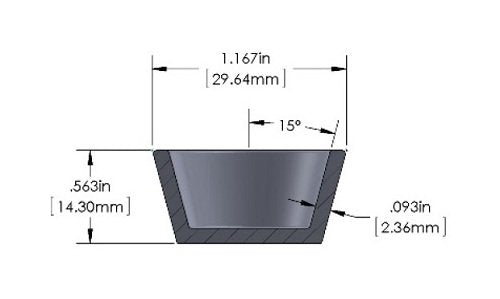

Product Specifications

Specifications Angle

15 Âº

Specifications Container Liner Type

Crucible

Specifications Height

0.563 in | 14.30 mm

Specifications Material

Vitreous Carbon

Specifications Size

7 cmÂ³

Specifications Wall Thickness

0.093 in | 2.36 mm

Specifications Width

1.167 in | 29.64 mm

RDM-EB4 7 cm³ Vitreous Carbon E-Beam Liner
