RDM-EB4 Molybdenum E-Beam Liner - 7 cm³
RDM-EB4 Molybdenum E-Beam Liner - 7 cm³
SKU:RDM-0b1129
High-quality RDM-EB4 Molybdenum E-Beam Liner - 7 cm³ for precise material containment & deposition control.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
RDM-EB4 Molybdenum E-Beam Liner - 7 cm³
$49.99
Quantity: 1
Claim Your Seller Account
RDM-EB4 Molybdenum E-Beam Liner - 7 cm³
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

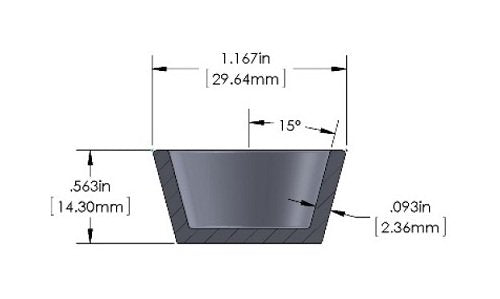

The RDM-EB4 Molybdenum E-Beam Liner in 7 cubic centimeter size is a high-quality crucible container liner designed for reliable performance in electron beam evaporation processes. With precise dimensions, including a height of 0.563 inches and a wall thickness of 0.093 inches, this liner ensures optimal material containment and deposition control. Crafted from durable molybdenum material, it offers excellent resistance to high temperatures and corrosion, making it ideal for demanding industrial applications. Custom sizes are available on request, and volume discounts make it a cost-effective choice for your lab or facility.
Product Specifications
Specifications Angle
15 º
Specifications Container Liner Type
Crucible
Specifications Height
0.563 in | 14.30 mm
Specifications Material
Molybdenum
Specifications Size
7 cm³
Specifications Wall Thickness
0.093 in | 2.36 mm
Specifications Width
1.167 in | 29.64 mm
