RDM-EB4 Series 7cm³ Aluminum Oxide E-Beam Liner
RDM-EB4 Series 7cm³ Aluminum Oxide E-Beam Liner
SKU:RDM-c1a4f5
Precision-engineered 7cm³ Aluminum Oxide E-Beam Liner for efficient vaporization in e-beam evaporation systems.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
RDM-EB4 Series 7cm³ Aluminum Oxide E-Beam Liner
$59.99
Quantity: 1
Claim Your Seller Account
RDM-EB4 Series 7cm³ Aluminum Oxide E-Beam Liner
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

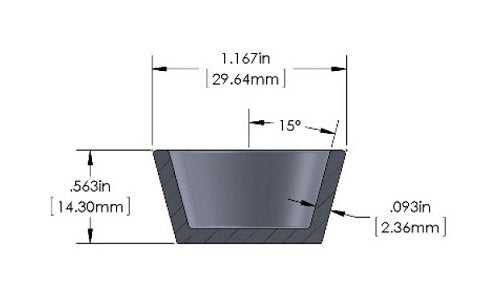

The RDM-EB4 Series 7cm³ Size Aluminum Oxide E-Beam Liner by R.D. Mathis Company is a precision-engineered crucible container liner designed for superior performance in electron beam evaporation systems. Constructed from high-quality aluminum oxide, this liner boasts a 15° angle, ensuring efficient material deposition. With a wall thickness of 2.36mm and dimensions of 1.167in width and 0.563in height, it offers durability and optimal vaporization. Ideal for industrial and research applications, this customizable liner is compliant with stringent standards, providing reliable results for your e-beam evaporation processes.
Product Specifications
Specifications Angle
15 º
Specifications Container Liner Type
Crucible
Specifications Height
0.563 in | 14.30 mm
Specifications Material
Aluminum Oxide
Specifications Size
7 cm³
Specifications Wall Thickness
0.093 in | 2.36 mm
Specifications Width
1.167 in | 29.64 mm
