RDM-EB6 40cm³ Molybdenum E-Beam Liner
RDM-EB6 40cm³ Molybdenum E-Beam Liner
SKU:RDM-951e9d
Precision-engineered 40cm³ Molybdenum E-Beam Liner for reliable electron beam processing. Custom sizes & volume discounts available.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
RDM-EB6 40cm³ Molybdenum E-Beam Liner
$89.99
Quantity: 1
Claim Your Seller Account
RDM-EB6 40cm³ Molybdenum E-Beam Liner
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

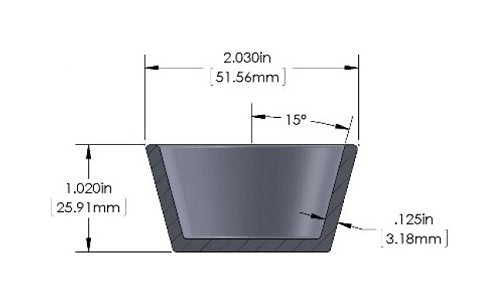

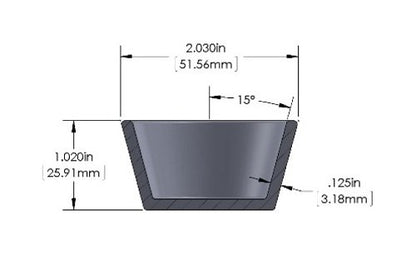

The RDM-EB6 Series 40 Cubic Centimeter (cm³) Size Molybdenum E-Beam Liner from R. D. Mathis Company is designed for precision e-beam applications. Constructed with high-quality molybdenum, this crucible-type container liner ensures optimal performance and durability. With dimensions of 1.020" x 2.030" (25.91mm x 51.56mm) and a 15° angle, it meets stringent industry standards for reliable electron beam processing. Custom sizes are available upon request, and volume discounts make it a cost-effective choice for research institutions and industrial facilities.
Product Specifications
Specifications Angle
15 º
Specifications Container Liner Type
Crucible
Specifications Height
1.020 in | 25.91 mm
Specifications Material
Molybdenum
Specifications Size
40 cm³
Specifications Wall Thickness
0.125 in | 3.18 mm
Specifications Width
2.030 in | 51.56 mm
