RDM-EB6 Boron Nitride E-Beam Liner - 40 cm³
RDM-EB6 Boron Nitride E-Beam Liner - 40 cm³
SKU:RDM-5e2ef5
High-performance Boron Nitride E-Beam Liner for precise E-Beam applications. Custom sizes available. Volume discounts offered.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
RDM-EB6 Boron Nitride E-Beam Liner - 40 cm³
$59.99
Quantity: 1
Claim Your Seller Account
RDM-EB6 Boron Nitride E-Beam Liner - 40 cm³
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

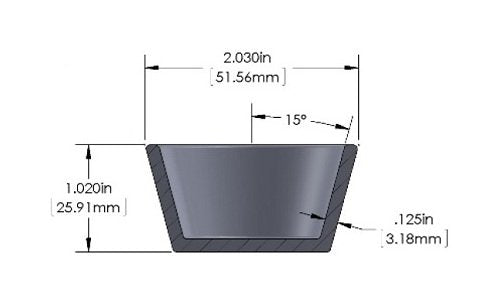

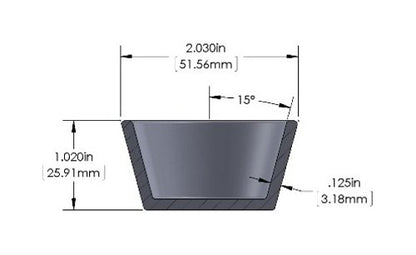

The RDM-EB6 Series 40 Cubic Centimeter (cm³) Boron Nitride E-Beam Liner by R. D. Mathis Company is designed to meet the demanding requirements of E-Beam applications. With precision engineering, this crucible-type liner boasts dimensions of 1.020 in height, 2.030 in width, 15° angle, and 0.125 in wall thickness. The Boron Nitride material ensures high thermal conductivity and chemical resistance, making it ideal for research and industrial processes. Custom sizing options available. Enjoy volume discounts for bulk orders.
Product Specifications
Specifications Angle
15 º
Specifications Container Liner Type
Crucible
Specifications Height
1.020 in | 25.91 mm
Specifications Material
Boron Nitride
Specifications Size
40 cm³
Specifications Wall Thickness
0.125 in | 3.18 mm
Specifications Width
2.030 in | 51.56 mm
