RDM-EB6 Series 40 cm³ Vitreous Carbon E-Beam Crucible Liner
RDM-EB6 Series 40 cm³ Vitreous Carbon E-Beam Crucible Liner
SKU:RDM-d17791
Precision-engineered 40 cm³ Vitreous Carbon E-Beam Crucible Liner for high-performance electron beam evaporation. Custom sizes, volume discounts available.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
RDM-EB6 Series 40 cm³ Vitreous Carbon E-Beam Crucible Liner
$69.99
Quantity: 1
Claim Your Seller Account
RDM-EB6 Series 40 cm³ Vitreous Carbon E-Beam Crucible Liner
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

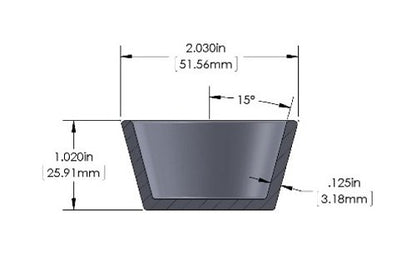

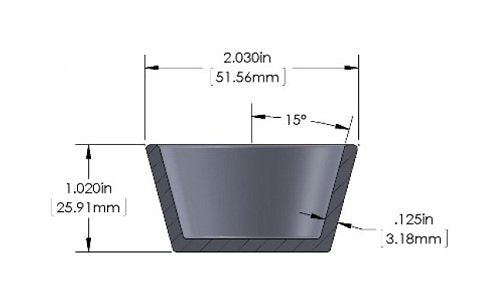

The RDM-EB6 Series 40 cm³ Vitreous Carbon E-Beam Liner from R. D. Mathis Company is precision-engineered for high-performance electron beam evaporation applications. With a wall thickness of 0.125 inches, an angle of 15 degrees, and a height and width of 1.020 inches and 2.030 inches respectively, this crucible liner ensures optimal material containment and evaporation efficiency. Crafted from durable vitreous carbon, it offers superior thermal stability, chemical resistance, and compatibility with a wide range of materials. Ideal for research institutions, laboratories, and industrial facilities requiring reliable E-beam deposition solutions. Custom sizes are available upon request, with volume discounts provided.
Product Specifications
Specifications Angle
15 º
Specifications Container Liner Type
Crucible
Specifications Height
1.020 in | 25.91 mm
Specifications Material
Vitreous Carbon
Specifications Size
40 cm³
Specifications Wall Thickness
0.125 in | 3.18 mm
Specifications Width
2.030 in | 51.56 mm
