RDM-EB9 Aluminum Oxide E-Beam Liner - 30cm³ Size
RDM-EB9 Aluminum Oxide E-Beam Liner - 30cm³ Size
SKU:RDM-be025b
Enhance your e-beam evaporation system with the RDM-EB9 Aluminum Oxide Liner - 30cm³ Size for superior performance.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
RDM-EB9 Aluminum Oxide E-Beam Liner - 30cm³ Size
$89.99
Quantity: 1
Claim Your Seller Account
RDM-EB9 Aluminum Oxide E-Beam Liner - 30cm³ Size
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

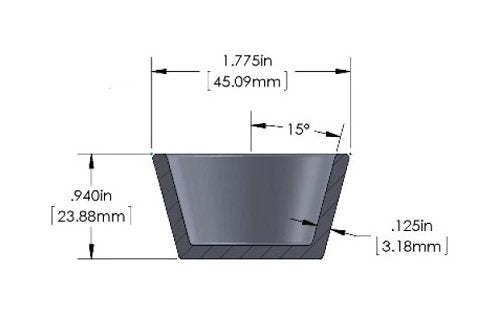

The RDM-EB9 Series 30 Cubic Centimeter Aluminum Oxide E-Beam Liner is a precision-engineered vessel designed for e-beam evaporation systems. Crafted by R.D. Mathis Company, this crucible liner boasts a 0.125-inch wall thickness, ensuring durability and uniform heat distribution. With dimensions of 0.940" in height, 1.775" in width, and an optimal 15° angle, it facilitates efficient material evaporation. Compliant with stringent industry standards, this liner guarantees reliability and performance in demanding laboratory and industrial settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Angle
15 º
Specifications Container Liner Type
Crucible
Specifications Height
0.940 in | 23.88 mm
Specifications Material
Aluminum Oxide
Specifications Size
30 cm³
Specifications Wall Thickness
0.125 in | 3.18 mm
Specifications Width
1.775 in | 45.09 mm
