RDM-EB9 Graphite E-Beam Liner 30 cm³

Name: RDM-EB9 Graphite E-Beam Liner 30 cm³
Brand: R.D. Mathis Company
SKU: RDM-290cde
Price: 49.99 USD
Availability: OutOfStock

SKU:RDM-290cde

Premium graphite E-Beam Liner for precise electron beam applications. Ideal for academic, research, and industrial institutions.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

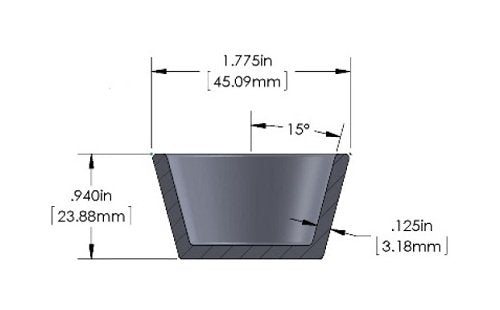

The RDM-EB9 Graphite E-Beam Liner in 30 cm³ size is a high-quality crucible designed for precise e-beam applications. Crafted from durable graphite with a 15º angle, 0.125 in wall thickness, and precise dimensions for optimal performance. Ideal for academic, research, and industrial institutions seeking reliable materials for electron beam evaporation processes.

Product Specifications

Specifications Angle

15 Âº

Specifications Container Liner Type

Crucible

Specifications Height

0.940 in | 23.88 mm

Specifications Material

Graphite

Specifications Size

30 cmÂ³

Specifications Wall Thickness

0.125 in | 3.18 mm

Specifications Width

1.775 in | 45.09 mm

RDM-EB9 Graphite E-Beam Liner 30 cm³
