RDM-EB9 Series 30cm³ Boron Nitride E-Beam Liner
RDM-EB9 Series 30cm³ Boron Nitride E-Beam Liner
SKU:RDM-987cd4
Enhance your electron beam deposition system with the precision-engineered RDM-EB9 Series 30cm³ Boron Nitride E-Beam Liner for optimal coating performance.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
RDM-EB9 Series 30cm³ Boron Nitride E-Beam Liner
$99.99
Quantity: 1
Claim Your Seller Account
RDM-EB9 Series 30cm³ Boron Nitride E-Beam Liner
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

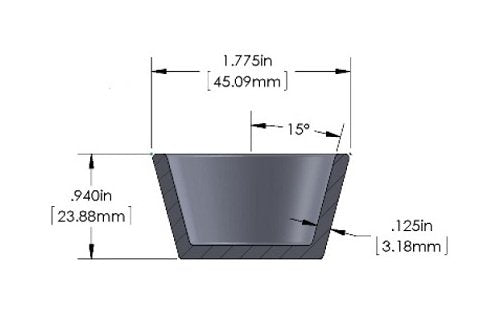

The RDM-EB9 Series 30cm³ Boron Nitride E-Beam Liner by R.D. Mathis Company is a precision-engineered Crucible Container Liner designed for high-performance electron beam evaporation systems. With a 15º angle, 0.125 inch wall thickness, and dimensions of 0.940x1.775 inches, this liner ensures efficient material containment and uniform coating deposition. Crafted from high-quality Boron Nitride, it offers exceptional thermal stability, chemical resistance, and longevity. Custom sizes available upon request. Ideal for vacuum deposition processes in research, industrial, and government applications.
Product Specifications
Specifications Angle
15 º
Specifications Container Liner Type
Crucible
Specifications Height
0.940 in | 23.88 mm
Specifications Material
Boron Nitride
Specifications Size
30 cm³
Specifications Wall Thickness
0.125 in | 3.18 mm
Specifications Width
1.775 in | 45.09 mm
