Ready-to-Bond Etched FEP High Voltage Wire
Ready-to-Bond Etched FEP High Voltage Wire
SKU:HIG-7b2afa
Discover the ultimate in high voltage wire technology with our Ready-to-Bond Etched FEP Wire. Exceptional strength and durability for your critical applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Ready-to-Bond Etched FEP High Voltage Wire
$29.99
Quantity: 1
Claim Your Seller Account
Ready-to-Bond Etched FEP High Voltage Wire
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

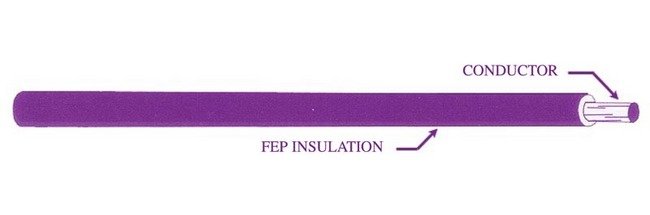

The Ready-to-Bond™ Etched FEP High Voltage Wire is a superior choice for high voltage applications, offering exceptional dielectric strength and durability. Its FEP insulation reduces corona inception, making it ideal for a range of demanding environments. With a smaller bend radius and excellent resistance to dielectric degradation, this wire ensures efficient space utilization and long-term performance. Designed for easy bonding with proper preparations, it provides reliable connectivity and enhanced safety in cable assemblies, power supplies, and transformers.
Product Specifications
Alternate Cable Part Number Equivalents Silicone Coated Part Num
178-5428
Cable Wire Properties Etched
Yes
Cable Wire Properties Jacketed
No
Cable Wire Properties Silicone Coated
No
Cable Wire Properties Twisted Pair
No
Cable Wire Properties Twisted Shielded Pair
No
Specifications Conductor Diameter
0.040 in
Specifications Conductor Gauge
28 AWG
Specifications Conductor Material
Copper
Specifications Conductor Plating
Tin Plated
Specifications Conductor Strands
19/40
Specifications Default Color
Natural
Specifications Insulator Material
FEP
Specifications Operating Temperature
-55 to 125 ºC
Specifications Overall Diameter
0.040 in
Specifications Standardnon Standard
Standard Part
Specifications Voltage Rating
18 kVDC
