Ready-to-Bond⢠Etched FEP High Voltage Wire - 28 AWG, 5kVDC, Silver Plated
Ready-to-Bond⢠Etched FEP High Voltage Wire - 28 AWG, 5kVDC, Silver Plated
SKU:HIG-d6b83a
High voltage wire with FEP insulation, 28 AWG, 5kVDC, silver plated conductors. Ideal for high voltage applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Ready-to-Bond⢠Etched FEP High Voltage Wire - 28 AWG, 5kVDC, Silver Plated
$29.99
Quantity: 1
Claim Your Seller Account
Ready-to-Bond⢠Etched FEP High Voltage Wire - 28 AWG, 5kVDC, Silver Plated
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

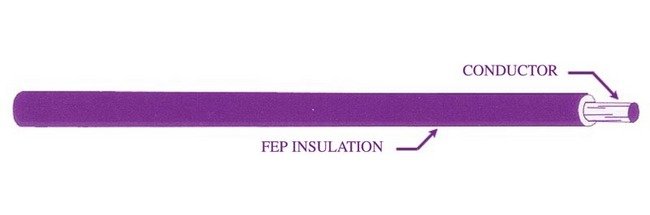

Experience exceptional dielectric strength with our Ready-to-Bond⢠Etched FEP High Voltage Wire. The FEP insulation offers superior durability, resistance to dielectric/corrosive fluid degradation, and small bend radius for efficient space utilization. With silver-plated copper conductors, this wire ensures reliable performance in high voltage applications, making it an ideal choice for cable assemblies, high voltage hookup wire, and power supplies. Its low corona inception, temperature range of -55 to 125 ºC, and ease of bonding with proper preparation make it a top-notch solution for demanding electrical systems.
Product Specifications
Cable Wire Properties Etched
Yes
Cable Wire Properties Jacketed
No
Cable Wire Properties Silicone Coated
No
Cable Wire Properties Twisted Pair
No
Cable Wire Properties Twisted Shielded Pair
No
Specifications Conductor Diameter
0.040 in
Specifications Conductor Gauge
28 AWG
Specifications Conductor Material
Copper
Specifications Conductor Plating
Silver Plated
Specifications Conductor Strands
19/40
Specifications Default Color
Natural
Specifications Insulator Material
FEP
Specifications Operating Temperature
-55 to 125 ºC
Specifications Overall Diameter
0.040 in
Specifications Standardnon Standard
Standard Part
Specifications Voltage Rating
5 kVDC
