Rectangular 120 VAC Electromagnet with Internal Rectifier
$75.99
Quantity: 1
Claim Your Seller Account
Rectangular 120 VAC Electromagnet with Internal Rectifier
$75.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

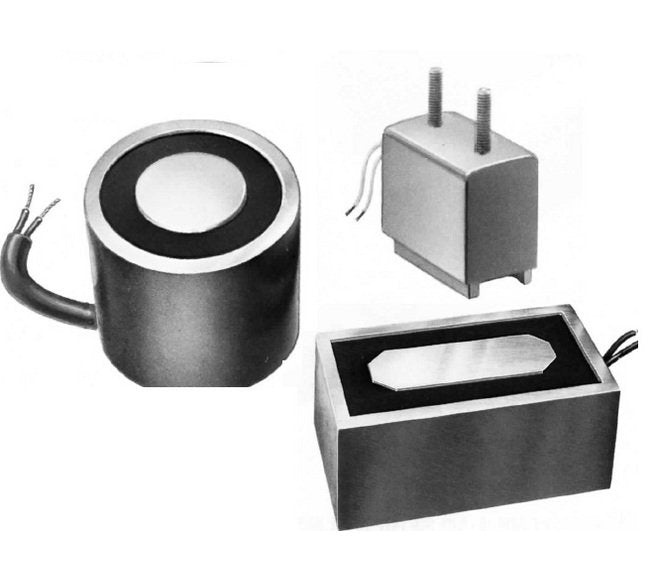

The Rectangular 120 VAC Electromagnet with Internal Rectifier is a versatile solution for various applications, offering a pull capacity of 80 lb on clean, flat, low carbon steel at magnetic saturation. With dimensions of 1 1/2'W x 1 1/4'H x 2 1/2'L, and a current of .05 A, this electromagnet is designed for efficiency and ease of use. The built-in rectifier ensures an output of 110 VDC from the 120 VAC input, eliminating the need for an external rectifier. Additionally, the 6 ft cord with a molded 3-prong plug simplifies installation. Perfect for both manual and automated applications, this electromagnet provides reliability and performance.
Product Specifications
Additional Information 0
It should be noted that the majority of installations use DC magnets with rectifier-controllers. The rectifier- controller provides the means for quick and clean release. The 120 VAC Electromagnets, due to the internal rectifier, cannot facilitate an electronic release function. An AC Electromagnet that is holding a part in direct contact and is de-energized without a release pulse can have up to 20 % residual magnetism. A 500 lb. capacity AC Electromagnet may not release a 100 lb. part cleanly, or at all, without a mechanical assist.
Manufacturing Notes 0
All units are 120 VAC and are provided with a 6 feet Cord with molded 3-prong plug switching can be accomplished by: relay contact, S.P.S.T. Switch, or 120 VAC PLC signal.
Specifications Ac Input Voltage
120 V
Specifications Cord Length
6 ft
Specifications Current
.05 A
Specifications Dc Output Voltage
110 V
Specifications Height
1 1/4 in
Specifications Length
2 1/2 in
Specifications Magnet Shape
Rectangular
Specifications Pull Capacity
80 lb
Specifications Width
1 1/2 in
